Splinter-free sawing like never before. The TSV 60 K plunge-cut saw with integrated scoring function delivers flawless cuts on both sides from the very first pass. Designed to replicate stationary machine quality on site, it provides unmatched accuracy, safety and flexibility.
Featuring a diamond scoring blade, EC-TEC motor and built-in KickbackStop, this saw ensures consistent results, reduced effort and maximum protection. Combined with the included FS 1900/2 guide rail and Systainer SYS3 M 437, it’s ready for precision cutting straight out of the box.
Key Features
- Splinter-Free Results – Adjustable built-in scorer ensures clean cuts on both sides from the first cut.
- Diamond Scoring Blade – Extremely long service life with consistent performance.
- KickbackStop – Stops the motor instantly if kickback is detected.
- 60mm Cutting Depth – Suitable for a wide range of panel and door applications.
- Mitre Capability – Perfect scoring from 0° to 45°.

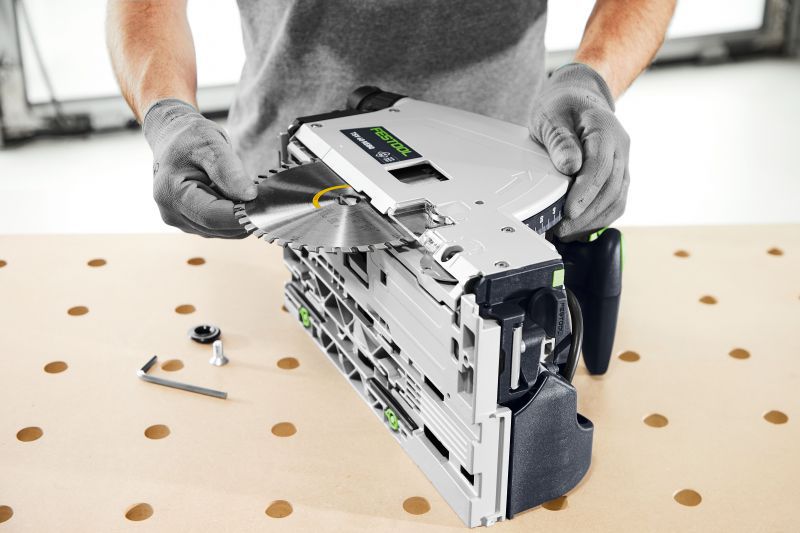

- FastFix System – Simple and quick blade changes for both main and scoring blades.

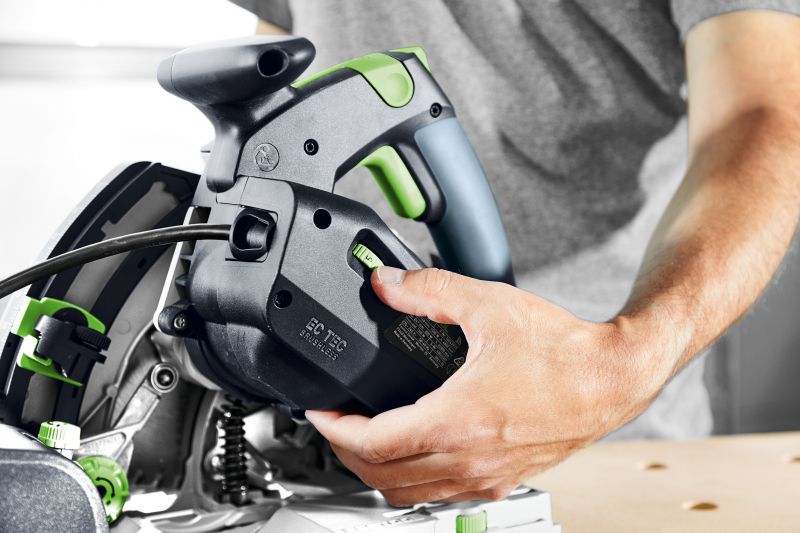

- EC-TEC Motor – Powerful, efficient performance with reduced effort.
Main Applications
- Splinter-free cutting of chipboard, veneered and coated panels
- Cutting HPL compact panels such as Trespa®
- Precise plunge cuts up to 60mm thick
- Interior door trimming and sizing
- Cutting recesses in doors and kitchen worktops

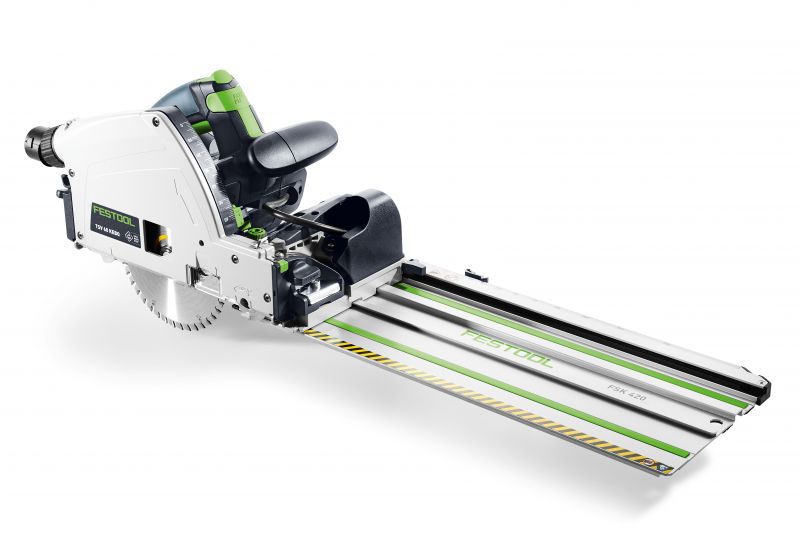

- Cross cuts using the FSK cross cutting guide rail

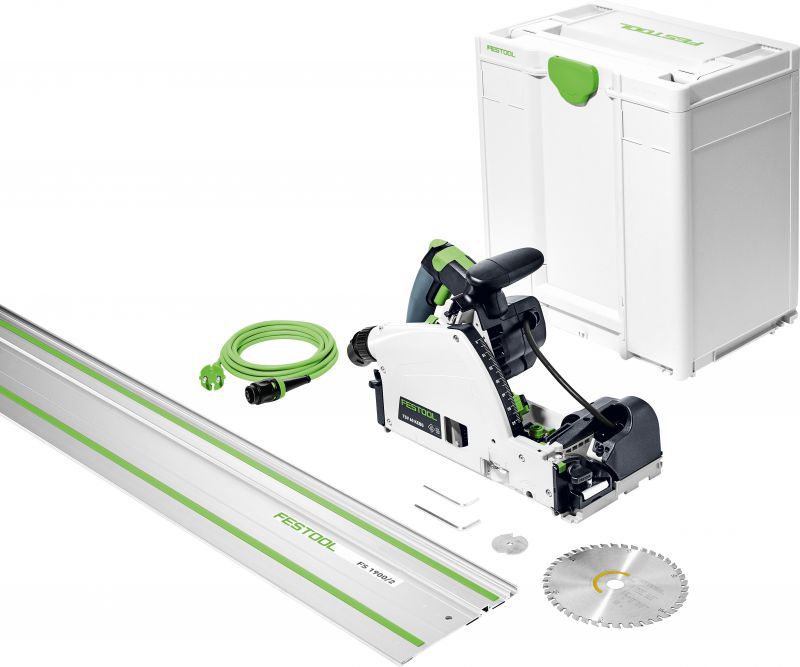

Supplied With
- Guide Rail FS 1900/2
- Systainer SYS3 M 437
- Scoring Saw Blade DIA 47x2.5x6.35 T1
- Wood Fine Cut HW 168 x 1.8 x 20 WD42 Circular Saw Blade
- Allen Key 4
- Hex Key WAF 5
- Flag Window / Vision Panel
Technical Data
| Power Consumption (Saw / Scorer) | 1500 / 150 W |
| No-Load Speed (Saw / Scorer) | 3000 - 6800 / 16000 - 22000 min⁻¹ |
| Saw Blade Diameter (Saw / Scorer) | 168 / 47 mm |
| Angular Range | 0 - 45 ° |
| Cutting Depth | 0 - 62 mm |
| Dust Extraction Connection | 27 / 36 mm |
| Cable Length | 4.0 m |
| Product Weight | 6.00 kg |
| Drive Type | Mains (110V) |
