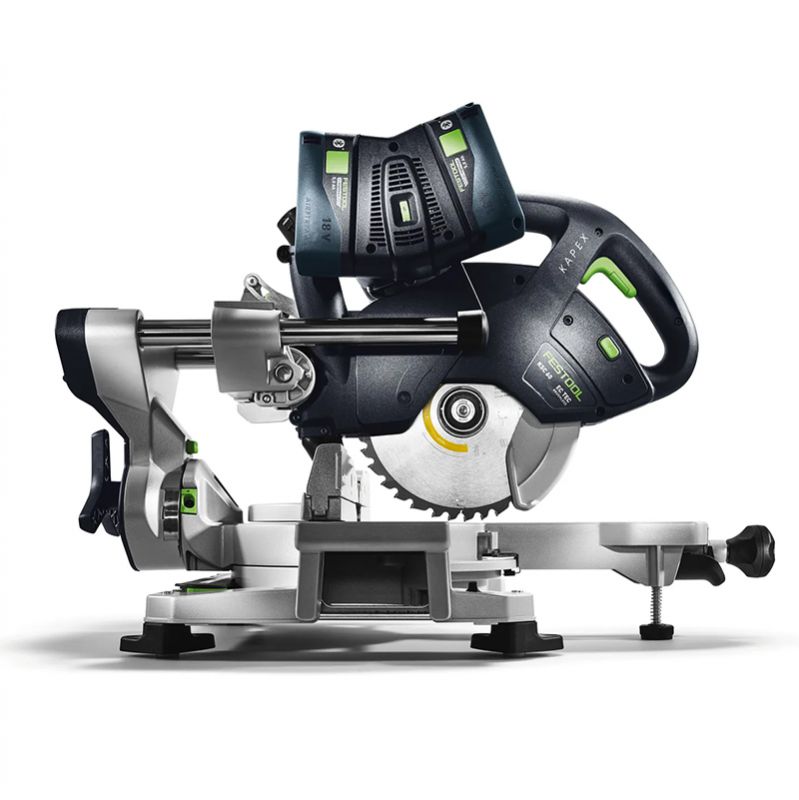

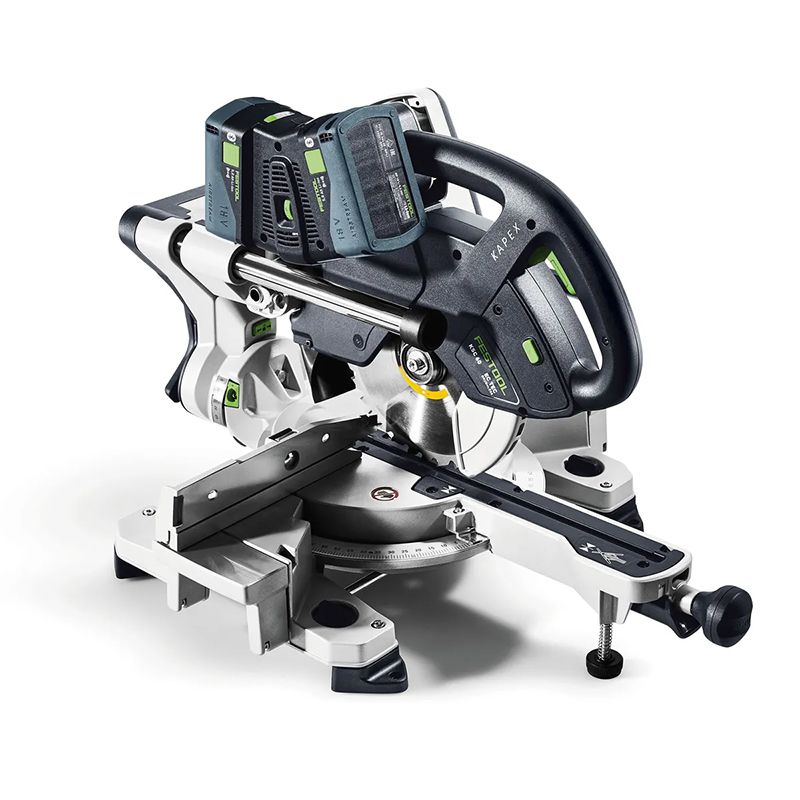

Festool KSC 60 EB-Basic-Set-UG KAPEX Cordless Sliding Compound Mitre Saw
High-precision cross cuts. With battery power for the entire day.
2 × 18V • 216mm Blade • 305 × 60mm Capacity • UG UnderframeThe Festool KAPEX KSC 60 cordless sliding compound mitre saw delivers highly precise cross cuts across a wide range of professional applications. With mitre angles of up to 60° on each side and bevel angles of up to 47° on each side, it provides the flexibility required for demanding assembly and installation work.
Its twin-column guide with two bearings ensures that the saw blade is guided smoothly and precisely at every setting, helping produce accurate cuts without unwanted movement or juddering. The brushless EC-TEC motor works together with the dual 18V battery system to provide powerful cordless performance for typical day-long applications.
Practical features including speed preselection, LED cutting-line illumination, bevel adjustment, chip collection bag and extension table support efficient and professional working. This Set-UG version also includes the underframe for improved mobility and ergonomic working height.
Key Features
- Twin-Column Guide – two bearings ensure smooth and precise guidance of the saw blade.
- Versatile Cutting Angles – mitre adjustment up to 60° on each side and bevel adjustment up to 47° on each side.

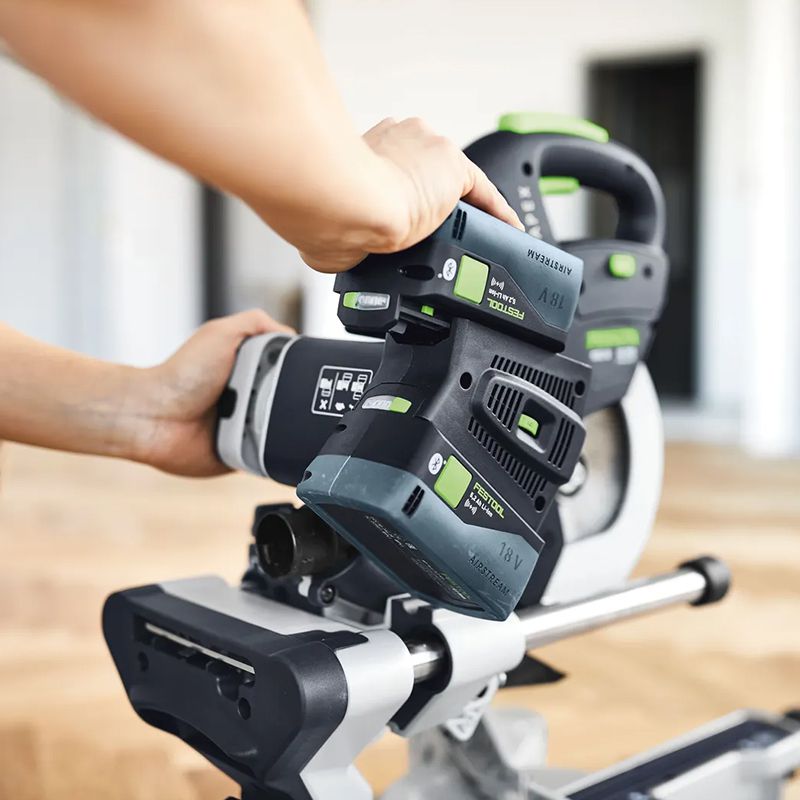

- Dual Battery System – combines two 18V batteries with the brushless EC-TEC motor for powerful cordless performance.

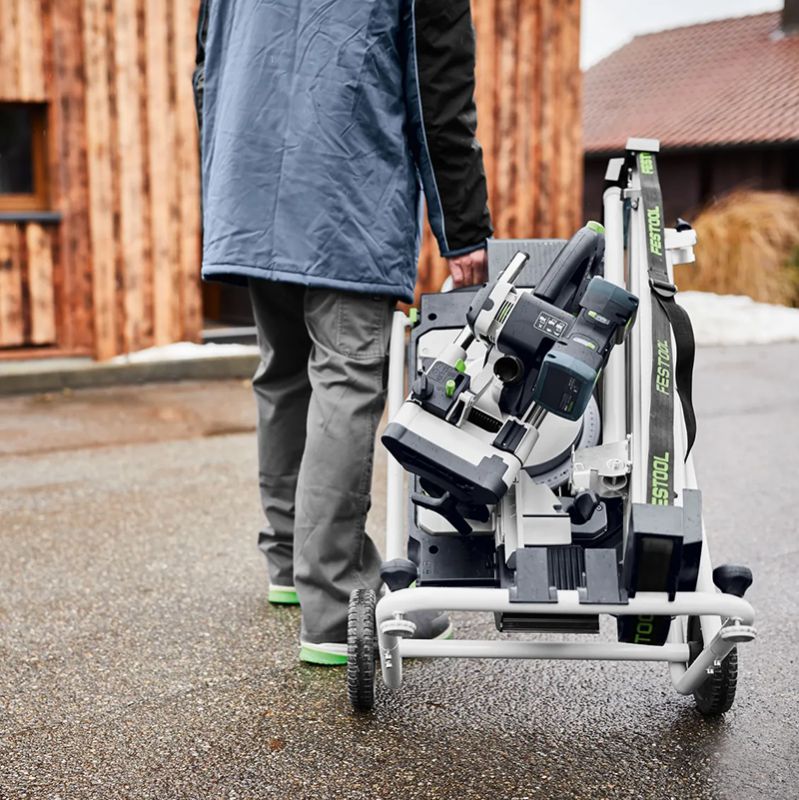

- Compact & Mobile – low weight, compact construction and convenient carrying handles support mobile site use.
- Material-Specific Speed – speed preselection allows the cutting speed to be matched to the material.
- Low-Dust Working – chip collection bag helps capture dust even when no mobile dust extractor is connected.
- Bevel Included – simplifies transferring interior and exterior angles.
- LED Spotlight – clearly illuminates the cutting line and scribe mark.

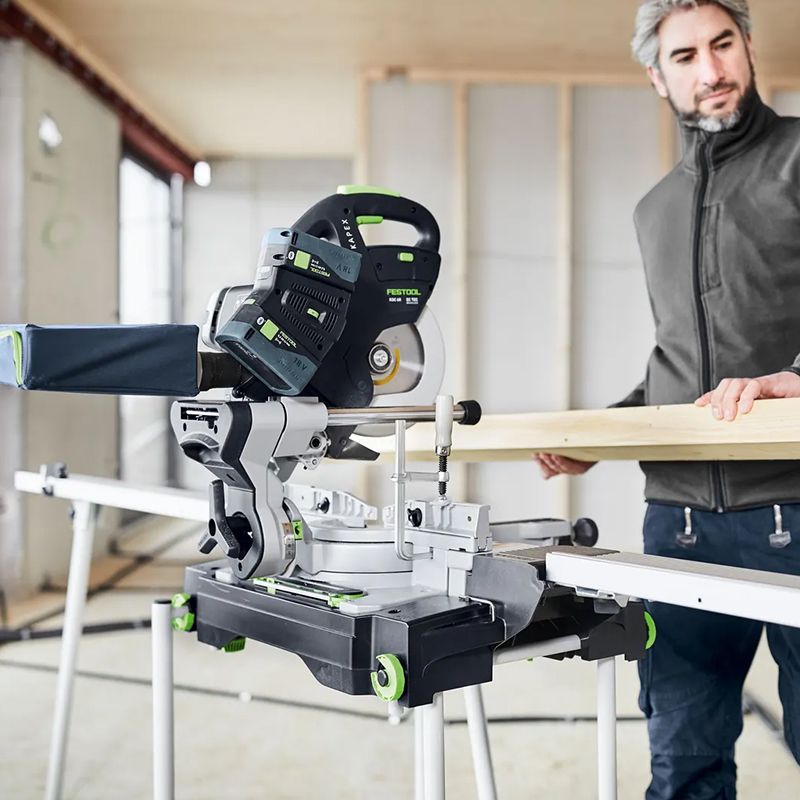

- Extension Table – provides stable support for longer workpieces.
- Height Adjustment Feet – increase the KSC 60 working height to match compatible Systainers.

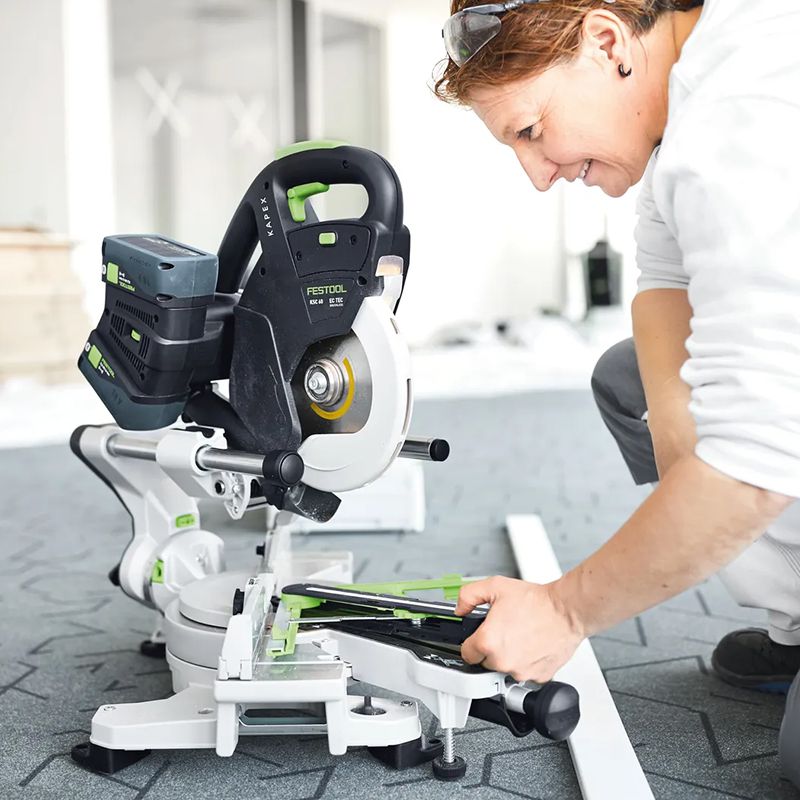

- Precise Angle Adjustment – use preset locking positions or individually set angles with the clamping mechanism.
- Fast Blade Changes – spindle stop enables quick and straightforward saw blade replacement.
Main Applications

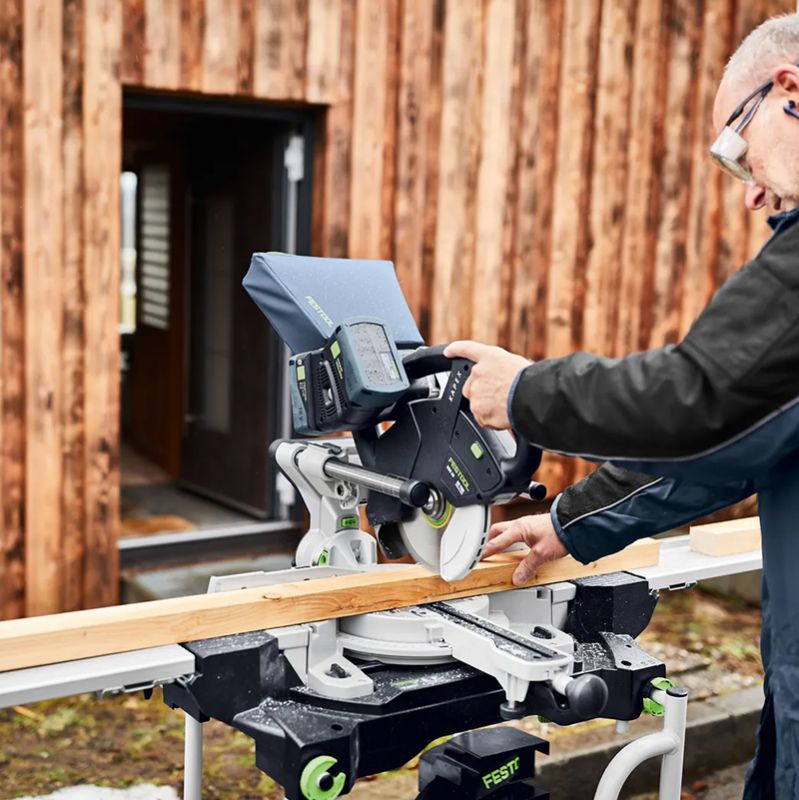

- Ideal for mobile use in assembly applications.
- Cutting boards and panels up to 305 × 60 mm.
- Trimming strips, profiles and square timber up to 60 mm thick.
- Precisely angled adjustment of skirting boards and cornices using the bevel.

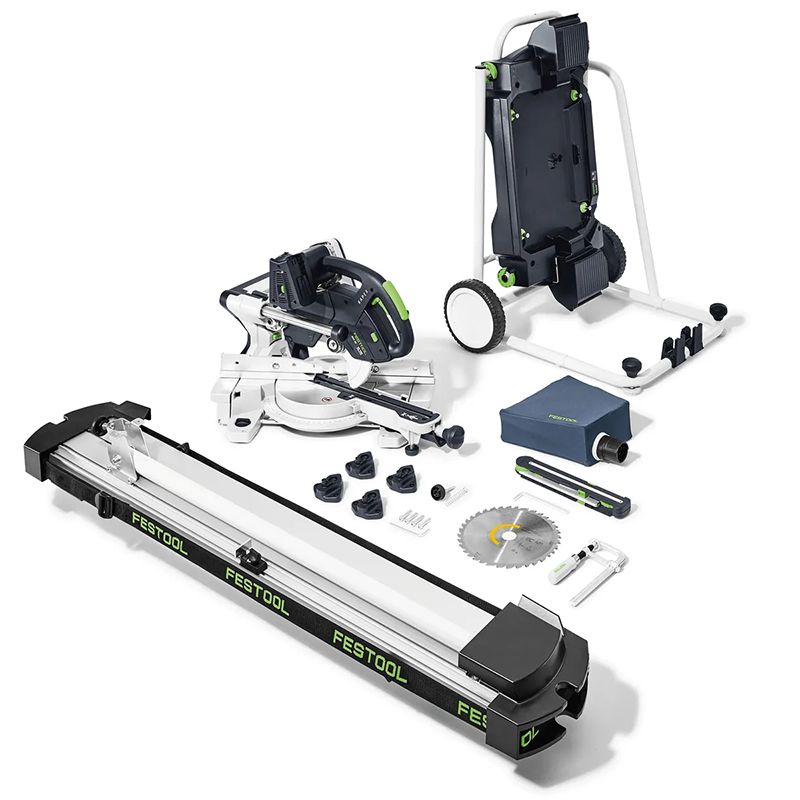

Supplied With
- Saw Blade – HW 216x2,3x30 W36
- Fastening Clamp – FSZ 120
- LED Spotlight
- Bevel – SM-KS
- Height Increase – A-SYS-KS 60
- Chip Collection Bag – SB-KSC
- Hex Key – WAF 6

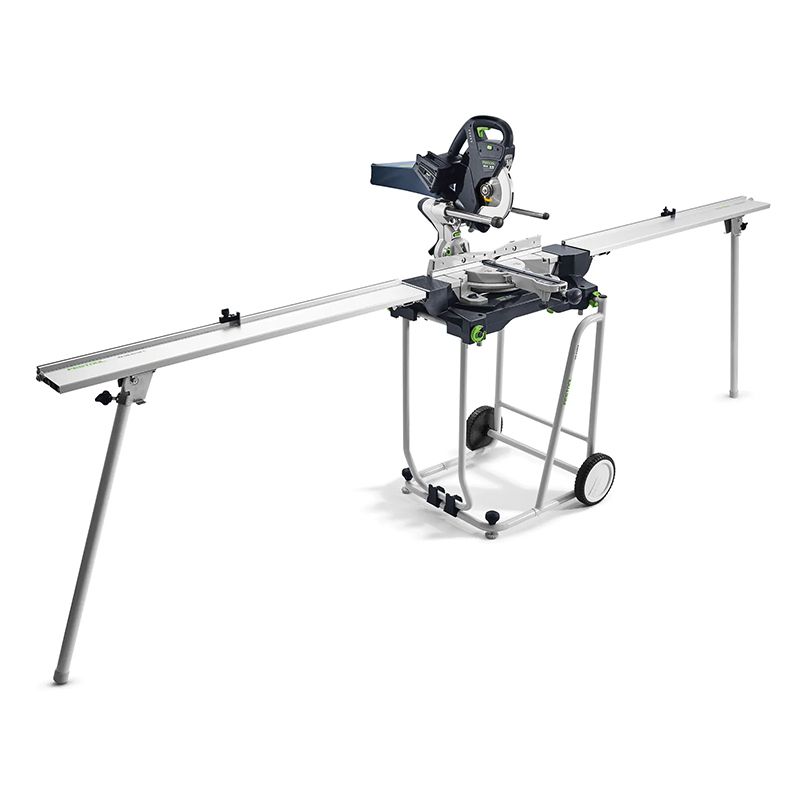

- Underframe – UG-KS 60
- Trimming Attatchment – KA-UG-KS 60-R/L
Technical Data
| Battery Voltage | 2 × 18 V |
| Idle Engine Speed | 1,300 – 1,800 / 3,500 min⁻¹ |
| Saw Blade Diameter | 216.00 mm |
| Cutting Depth 90° / 90° | 305 × 60 mm |
| Cutting Depth 45° / 90° | 215 × 60 mm |
| Cutting Depth 45° / 45° Left | 215 × 40 mm |
| Cutting Depth 45° / 45° Right | 215 × 20 mm |
| Inclination Angle | 47° / 46° |
| Mitre Angle | 60° / 60° |
| Cutting Depth 60° / 90° | 150 × 60 mm |
| Dimensions (W × D × H) | 639 × 459 × 442 mm |
| Dust Extraction Connection | 27 / 36 mm |
| Battery Capacity | 5.00 Ah |
| Drive Type | Battery |
| Product Weight Without Accessories | 17.30 kg |
Noise & Vibration
| Total Vibration Average, Ah | 2.50 m/s² |
| Standards Series EN | 62841-3-9 |
| Uncertainty (Noise) K | 3.00 dB |
| Sound Power Level, LWA | 101.00 dB(A) |
| Sound Pressure Level, LpA | 88.00 dB(A) |
| Uncertainty (Vibration) K | 1.50 m/s² |
