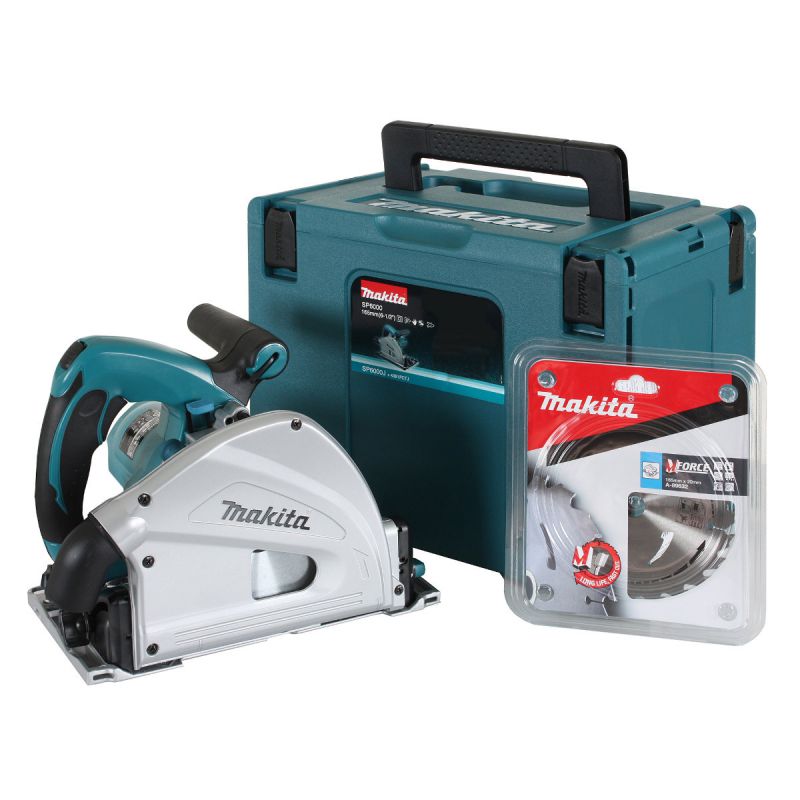

Makita SP6000J 110 Volt 165mm Plunge Cut Saw 1300W w/ MakPac Type 4 Kitbox

The Makita 165mm Plunge Cut Circular Saw combines a powerful 12 AMP motor and a large cutting capacity with magnesium components for less weight and electronic speed control to maintain constant speed under load for smooth cutting and a splinter-free mirror finish. The SP6000J is a more portable option to a table saw for select applications, and it is ideal for use on the jobsite or in a workshop.

Precision Settings and Features for Quality Cuts

The SP6000J saw has a bevel capability of -1° to 48° with positive stops at 22.5° and 45°. The saw delivers precise cutting, as the position of the blade enters the material on the same cutting line whether cutting straight or bevel. In addition, the saw has close-to-wall cutting (18mm) for expanded cutting applications. The built-in depth stop allows a preliminary cut of 2mm to be performed before the entire material is cut through for clean and splinter-free cutting.

12 AMP Direct-Drive Power for Smooth Cutting

The SP6000J has a powerful 12 AMP motor with soft start for smooth start-ups, and Electronic Speed Control to maintain a constant speed under load for smooth cutting. The variable speed dial control (2,000 – 5,200 RPM) allows the user to set the speed for optimum performance in a variety of materials. The built-in torque limiter helps prevent motor burnout, with an electric brake for added productivity.

Precision Cuts and Ease of Use

The saw includes a range of convenient features, including a large top handle, an electric brake for more productivity, as well as a lock-lever that attaches the saw to the rail system so the saw stays on the anodised aluminium rail when positioned for a bevel cut. The smooth and convenient plunge release lever is designed for operator comfort, and the depth adjustment with large scale is easy to set.

Best in Class for a Range of Applications

The SP6000J is engineered for cutting sheet material, finish work, trim work, and remodelling. It is ideal for a broad range of trades, including cabinet installers, cabinet manufacturers, finish carpenters, stair installers, flooring installers, woodworkers, and general contractors seeking a best-in-class 165mm Plunge Circular Saw.

Features & Benefits:

12 AMP motor with variable speed control dial (2,000 - 5,200 RPM) for optimum performance in a variety of materials
Large cutting capacity (55mm max cut at 90° and 39mm at 45°)
Bevel capability (-1 to 48°) with positive stops at 22.5° and 45°
Close to the wall cutting (18mm) for expanded cutting applications
Electronic speed control maintains constant speed under load for smooth cutting
Built-in current limiter helps prevent motor burnout
Soft start feature for smooth start-ups
Easy-to-set depth adjustment with large scale
Smooth and convenient plunge release lever for operator comfort
Magnesium components deliver a well balanced and lightweight saw at only 4.2 Kg
Dual front and rear bevel supports provide additional rigidity for precise and accurate bevel cuts
Precise bevel cutting as the position of the blade enters the material on the same cutting line whether cutting straight or bevel
Locking lever holds the blade in position so that the wrench can be inserted through the hole in the blade case for easier blade installation
Blade wrench attaches to the saw for fast and convenient blade changes
Built-in depth stop allows a preliminary cut of 2mm to be performed before the entire material is cut through for clean and splinter-free cutting
Large rear dust port directs material away from the operator and easily connects to a vacuum system
Guide Rails (sold separately) interact with the saw base to provide smooth, perfect, dead-on straight or bevel cutting
Saw base is attachable to other guide rail systems in the market (please confirm before purchase)

Technical Specification:

Depth of Cut @ 90°: 55 mm
Blade Diameter: 165 mm
Depth of Cut @ 45º: 39 mm
Bore Diameter: 20 mm
Input Wattage: 1300 w
No-Load Speed: 2,000 - 5,800 rpm
Net Weight: 4.2 kg

Noise & Vibration:

Noise Sound Pressure: 91 dB(A)
Noise Sound Power: 102 dB(A)
Noise K Factor: 3 dB(A)
Vibration K Factor: 1.5 m/sec²
Vibration: Cutting Chipboard: 2.5 m/sec²

Supplied As:

1 x SP6000J Plunge Cut Saw
1 x Makpac Connector Case Type 4
1 x Inlay for Makpac Case
1 x 48T Carbide-Tipped Saw Blade
1 x Hex Wrench
