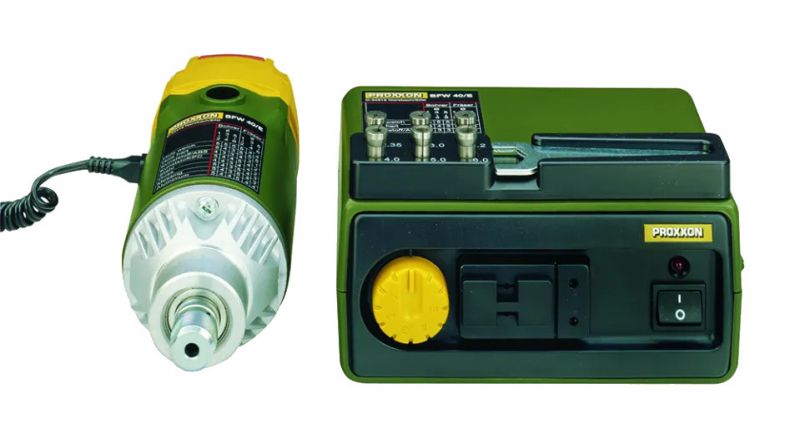

Mill/drill system BFW 40/E, with controller for speeds of 900 - 6,000rpm.

The triple ball bearing armature provides direct drive (no gearing).

Die-cast aluminium head with spindle neck of 43mm (European standard). Large, easy to use switch with emergency function. Chart indicates optimum speeds for milling and drilling of various materials.

The motor operates at 40V, supplied from the power pack/ controller. At this level, the control characteristics are ideal and yield high torque, even at lower speeds. (The compound table, drill stand and step clamps are not included.)

Other technical data:
Control unit with full wave electronics for 230V, 40VDC secondary voltage. Power consumption up to max. 250W. Spindle speed infinitely variable between 900 and 6,000rpm. Complete with triple slit, hardened collets covering 2.35 - 3 - 3.2 - 4 - 5 and 6mm as well as one locking pin and one spanner.
