Proxxon 24421 Universal Dividing Table UT 400

Proxxon 24421 Universal Dividing Table UT 400

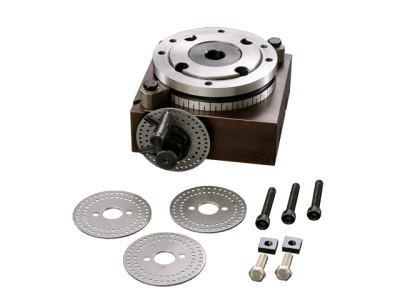

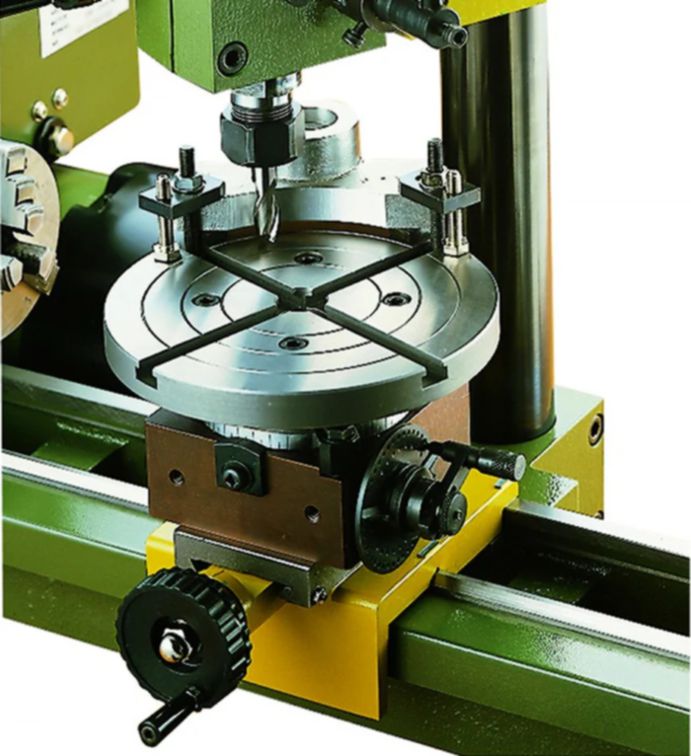

For smooth machining of round workpieces. For horizontal and vertical installation. Worm gear for divisions up to 360°. With the possibility of making almost all divisions up to 100. With 4 linked dividing discs: 27/42, 33/40, 34/39 and 36/38. For the production of gears, pinions, ratchets, cams, etc. (delivered without face plate). The chuck holder is identical to the main spindle holder of the PD 400 lathe. With matching slotted nuts and fastening screws for T-slots according to the MICROMOT standard (12 x 6 x 5 mm). In a wooden box with a hinged lid.

Mounting type: vertical or horizontal;
Worm gear allows division up to 100;
The head is equipped with T-shaped grooves of the MICROMOT standard (12 x 6 x 5 mm);
The chuck seat is identical to the spindle;
The set includes: dividing disks 27/42, 33/40, 34/39, 36/38;
Packaging type: wooden box with sliding lid.
