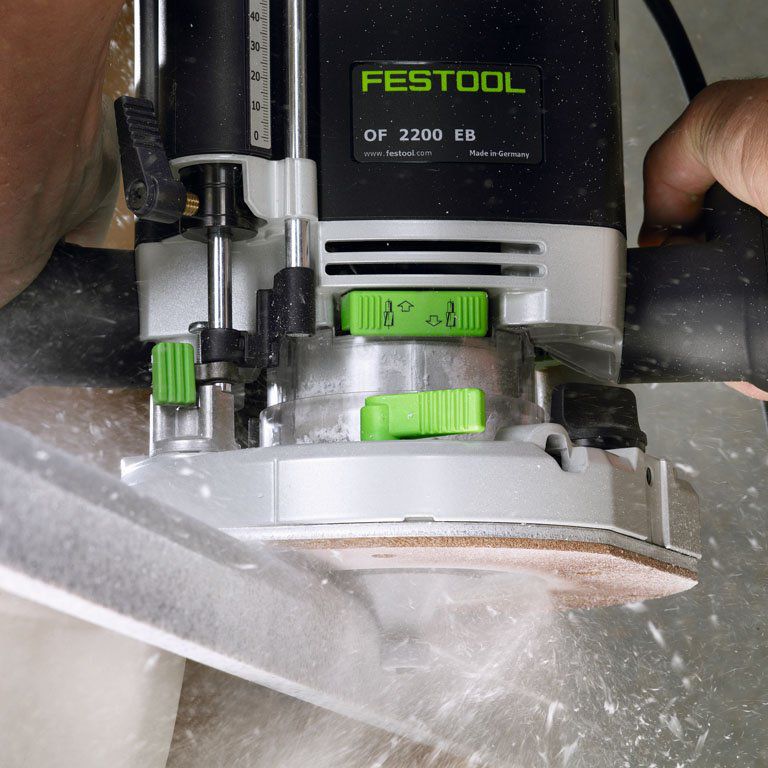

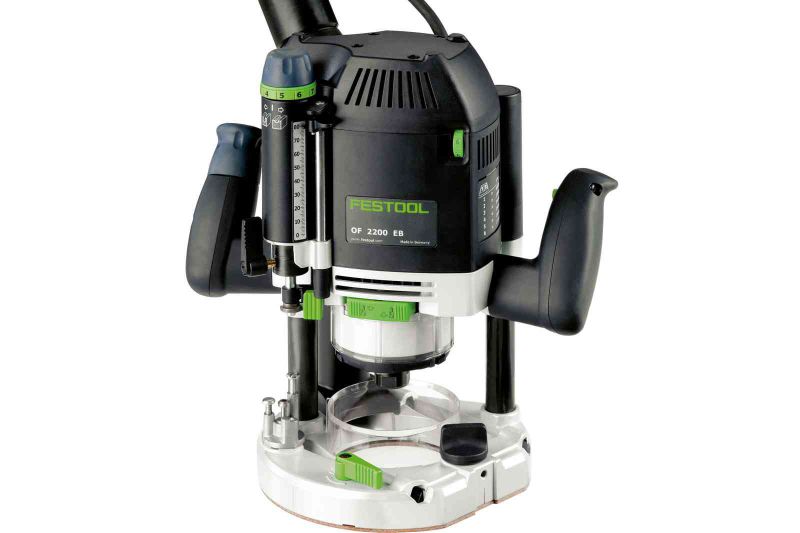

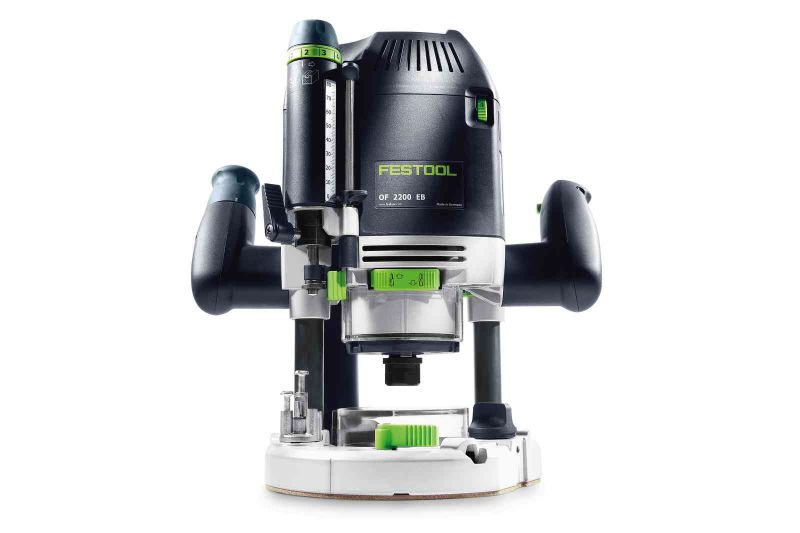

The OF 2200 EB-Plus router combines enormous low-end torque with ergonomic comfort, precise operation, and maximum safety. Its dual guide column clamp ensures torsional rigidity for accurate results. With fully variable speed control, adjustable dust extraction, and a tool-free system for copying ring and base-runner changes, the OF 2200 is perfect for demanding routing tasks on both small and large-scale projects.
Key Features
- High torque & variable speed: Ideal for hard materials and increased thicknesses.
- Ergonomic design: Guide rods offset by 30° to efficiently transfer force.
- Precision: Dual guide column clamp for stability and accuracy.
- Maximum safety: Safety brake stops the cutter promptly.
- Tool-free operation: Copying ring and base-runner changes without tools.
- Fast bit changes: Rocker and ratchet principle simplifies cutter swaps.

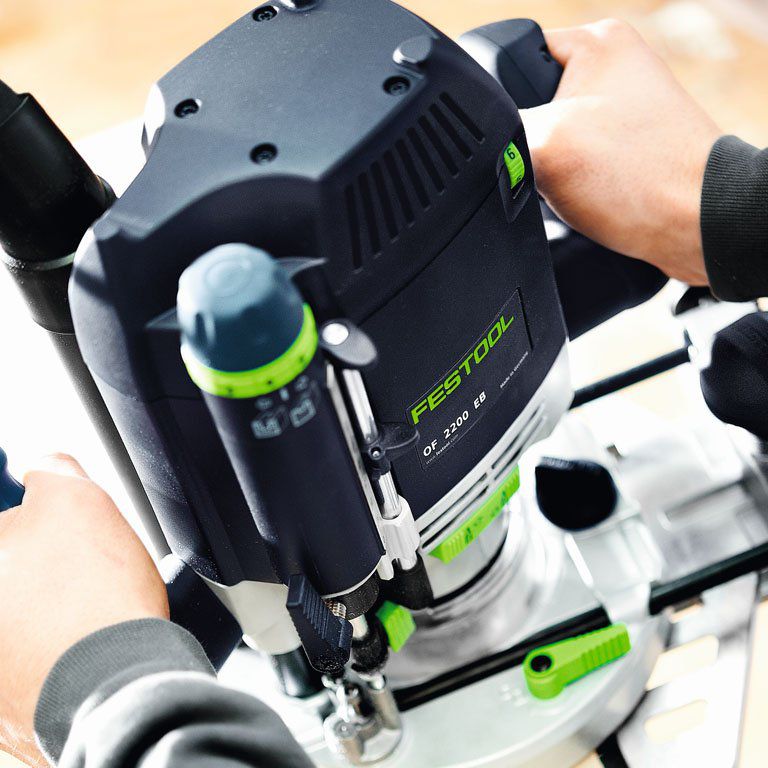

- Exact routing depth: Fine adjustment to 0.1 mm.
- Dust-free: Adjustable extraction ring and chip catcher remove up to 99% of dust.
Main Applications

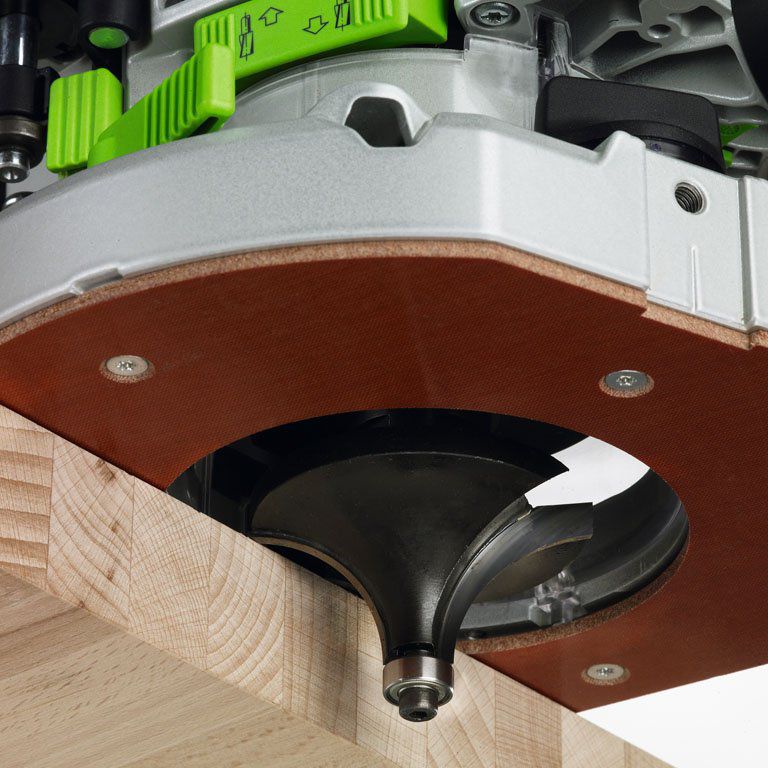

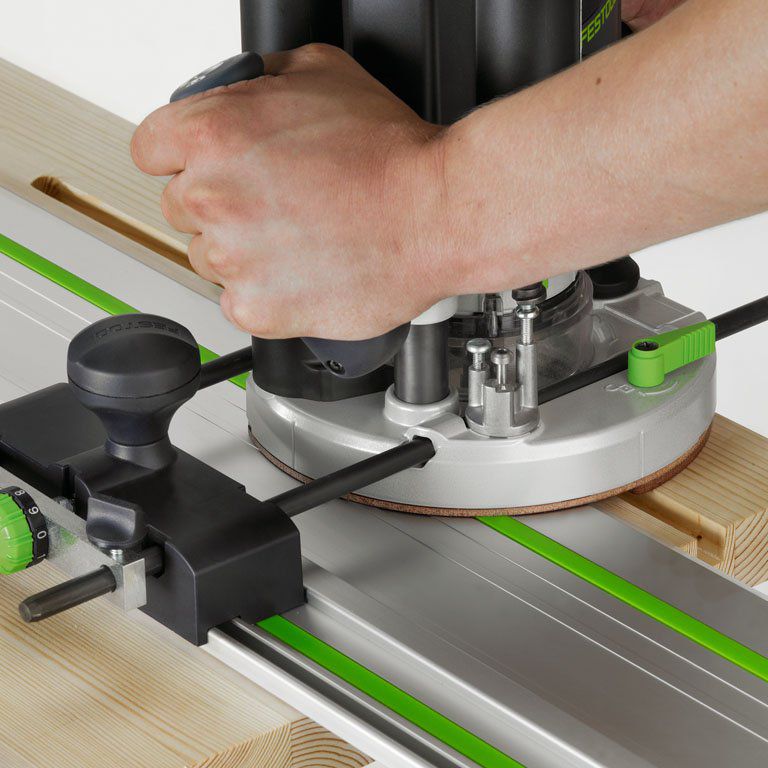

- Rabbeting, grooving, and profiling.

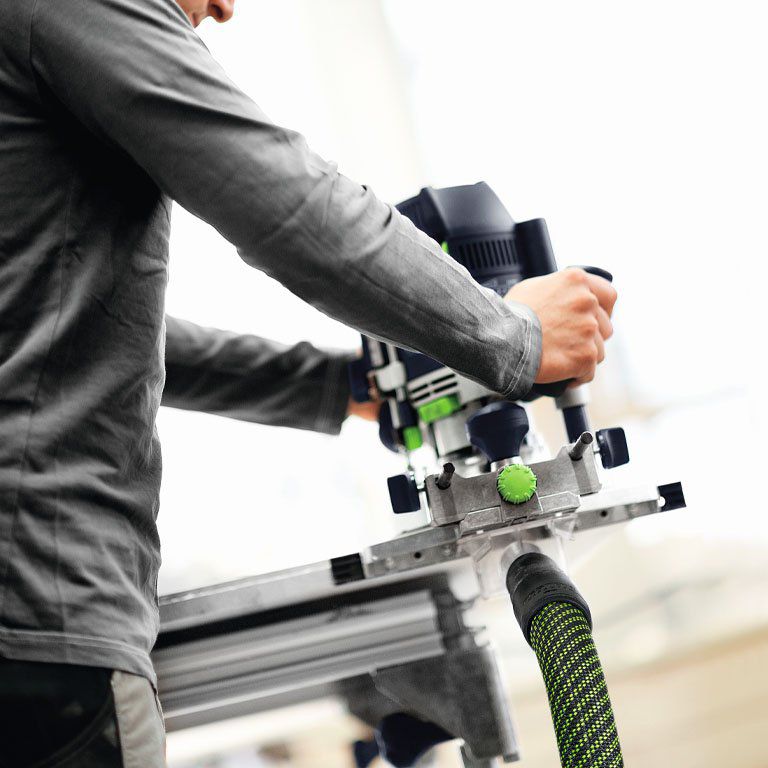

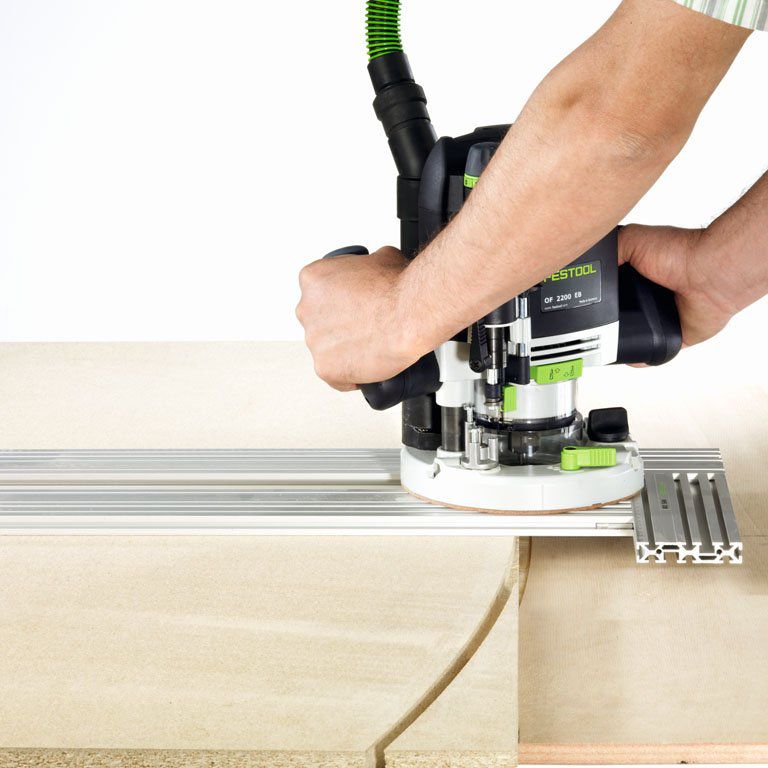

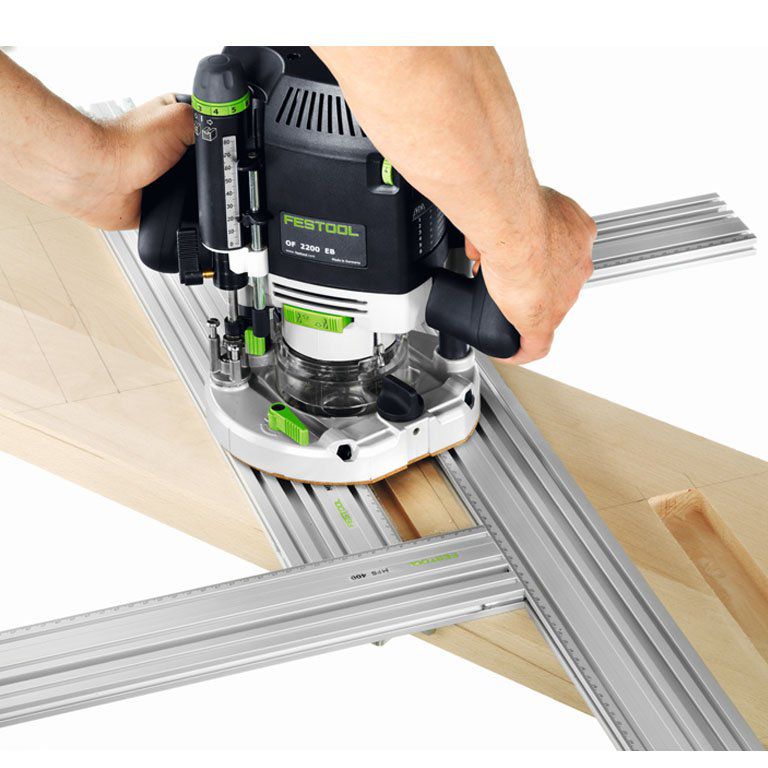

- Routing large cutouts, circles, and arcs with the MFS routing template.

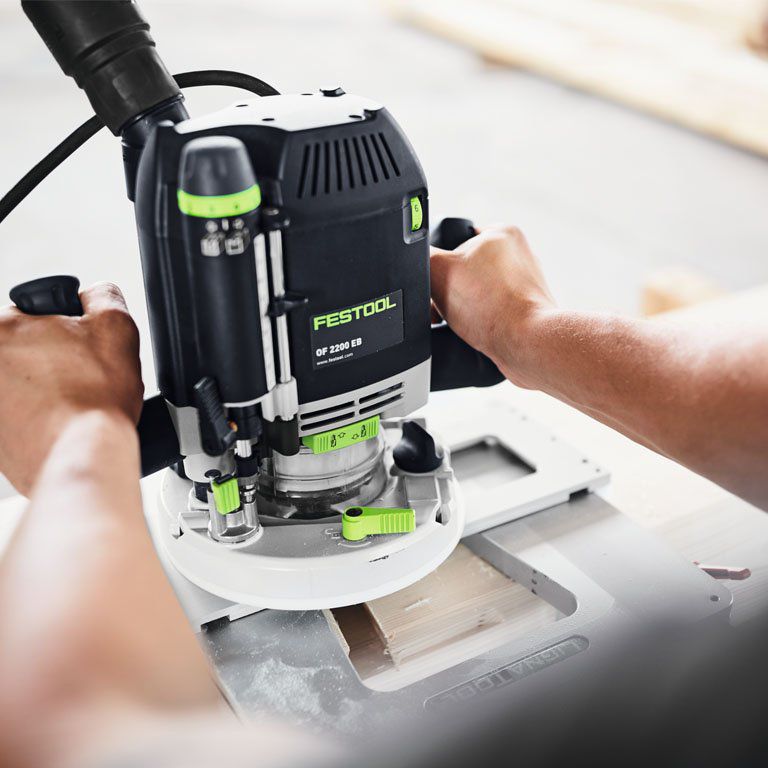

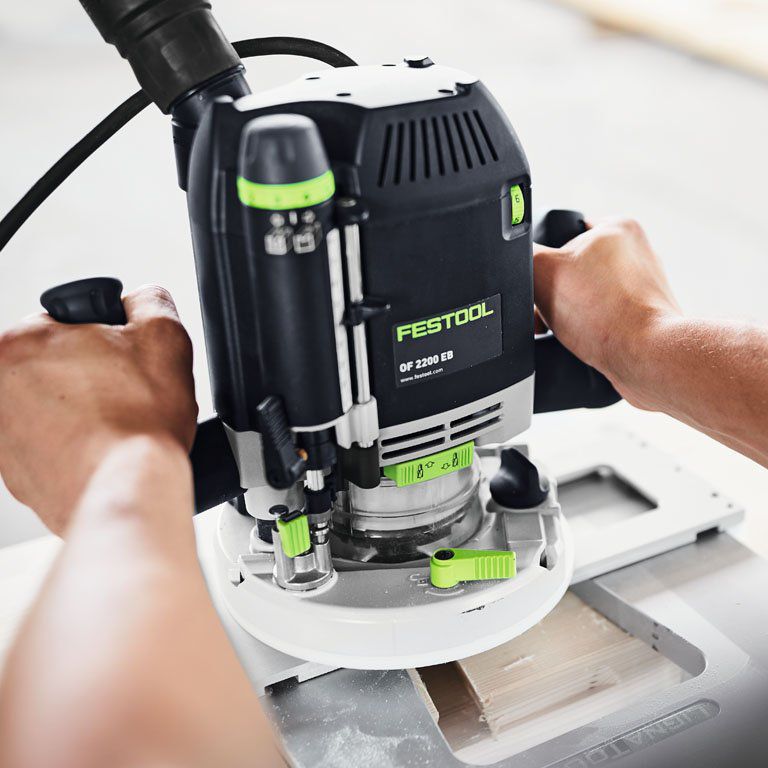

- Creating worktop corner joints with the worktop template.

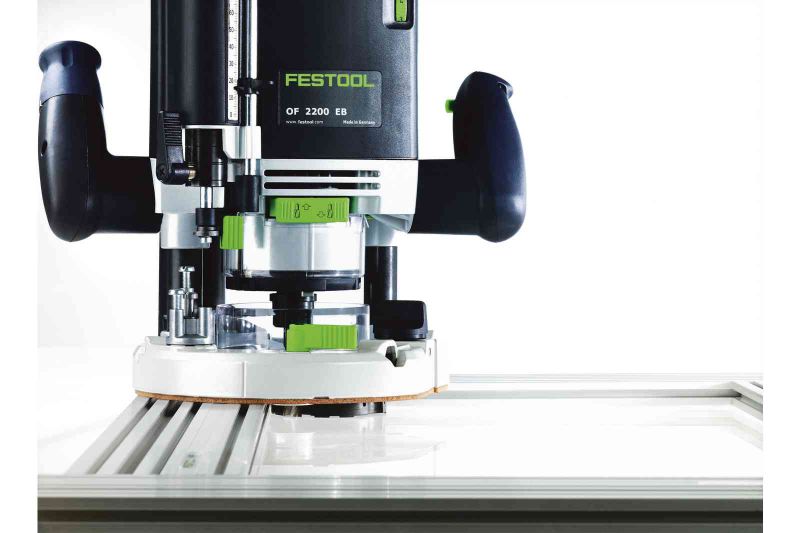

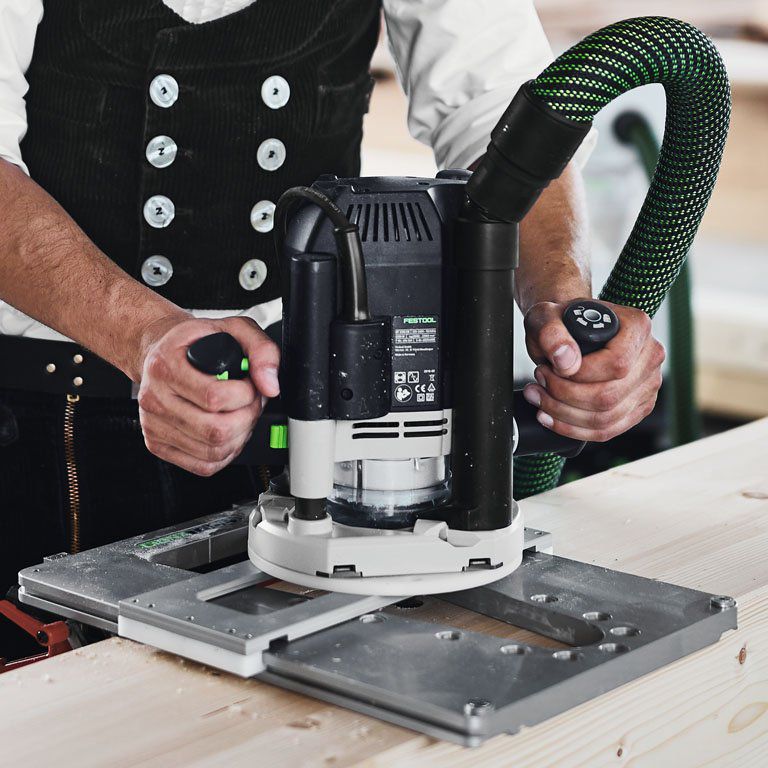

- Routing seals and espagnolettes in windows and doors.
- Stationary routing up to Ø 60 mm with the TF 2200 table router.

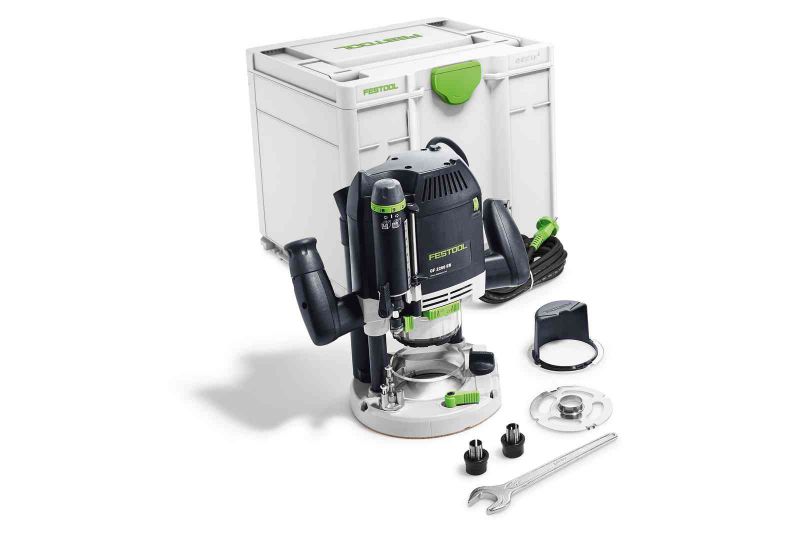

Items Included
- Chip deflector
- Copying ring Ø 30 mm
- Ø 1/2" Clamping Collet (12.7mm)
- Ø 1/4" Clamping Collet (6.35mm)
- Open-ended spanner WAF 24
- SYS 4 TL Systainer
Technical Specifications
| Power Consumption | 2,200 W |
| Idle Engine Speed | 10,000 – 22,000 min⁻¹ |
| Collet Diameter | 6 – 12.7 mm |
| Routing Stroke | 80 mm |
| Routing Depth Fine Adjustment Range | 20 mm |
| Bench Opening | 89 mm |
| Dust Extraction Connection | 36/27 mm |
| Cable Length | 4 m |
| Drive Type | Mains |
| Product Weight | 8.30 kg |
| Transport Weight | 11.82 kg |
