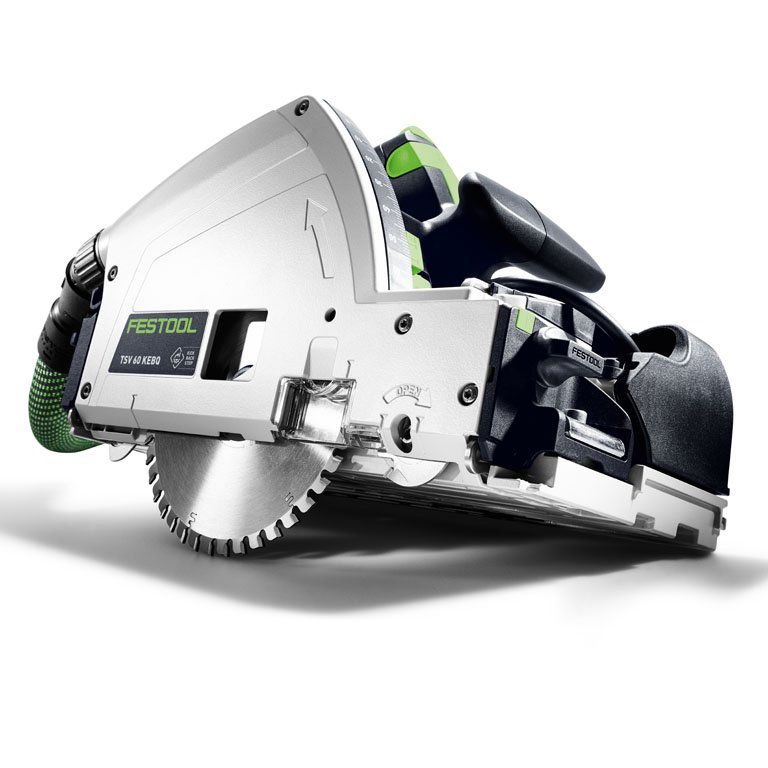

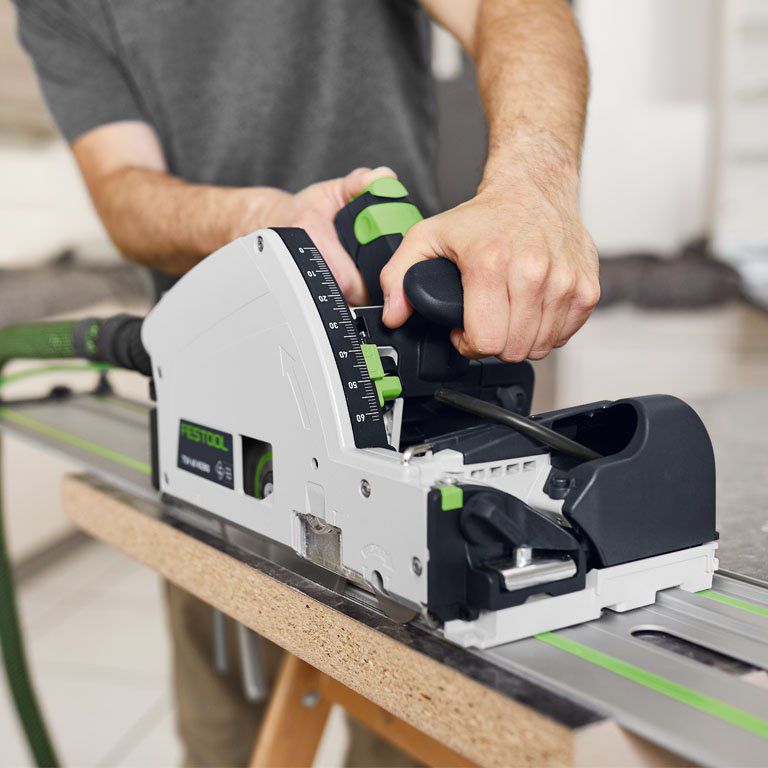

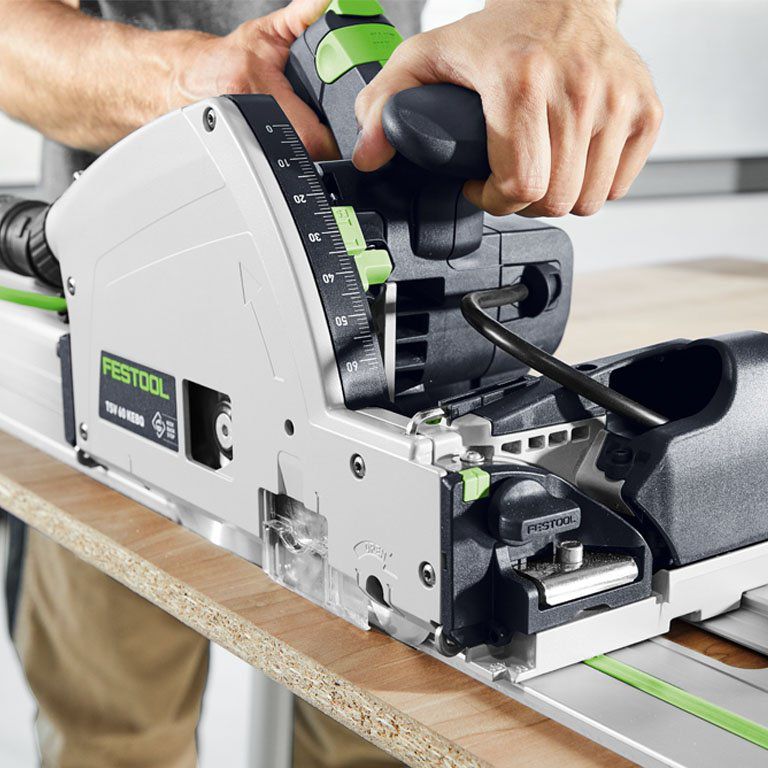

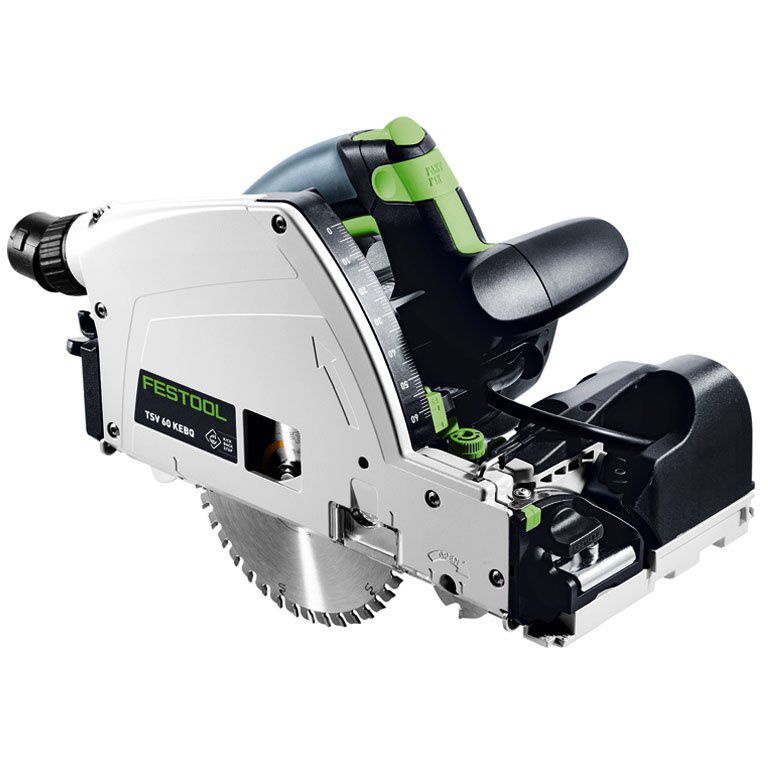

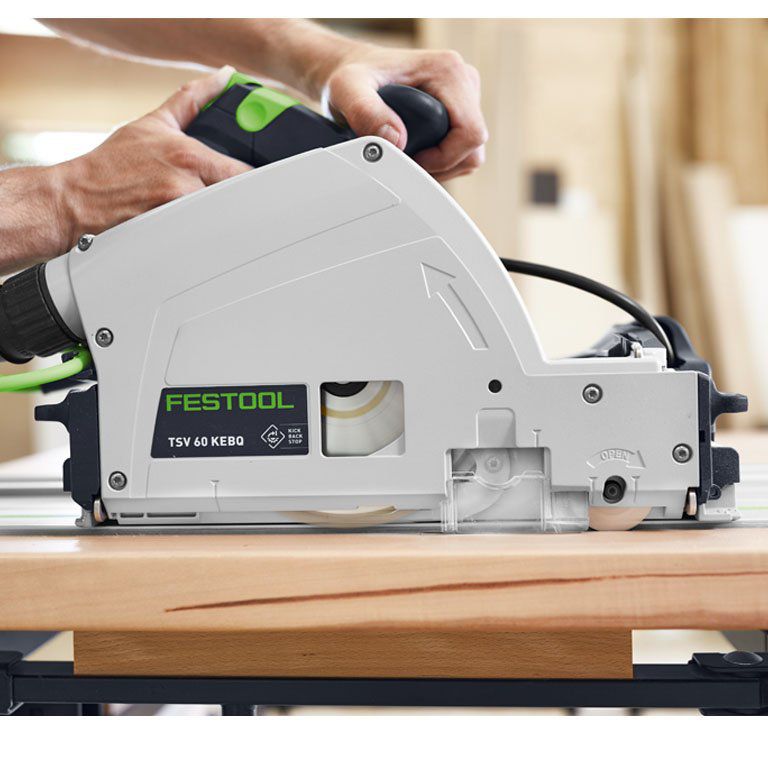

The TSV 60 K plunge-cut saw with integrated scoring function delivers splinter-free cuts on both sides from the very first cut. Designed to replicate workshop-quality results on the construction site, it combines precision engineering with outstanding safety and system compatibility.

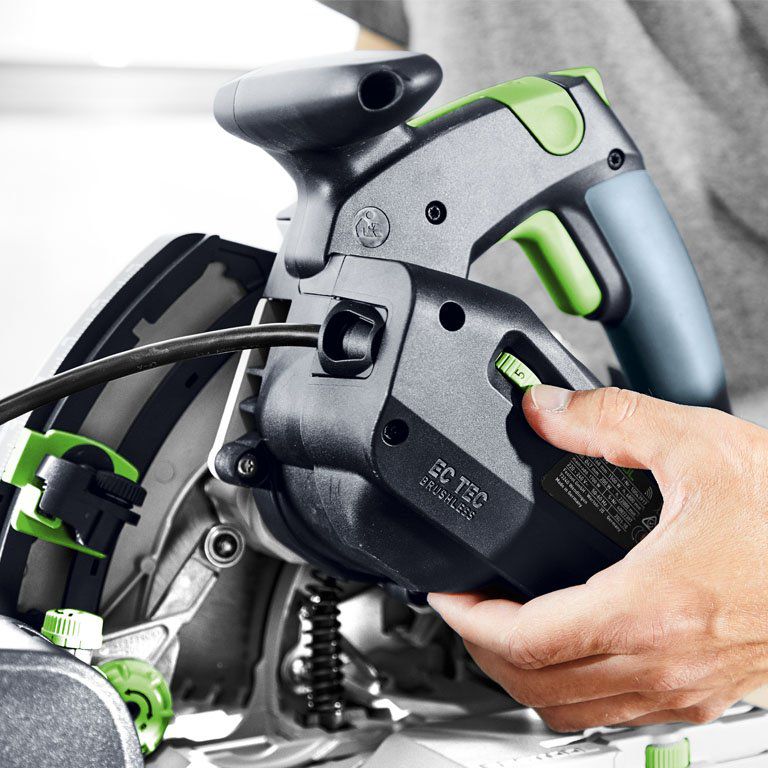

The diamond scoring saw blade ensures an exceptionally long service life and consistently perfect cut quality, while the EC-TEC motor and thin-kerf saw blades allow effortless progress through even demanding materials.
With the unique KickbackStop, flexible guide rail compatibility and precise mitre capability, the TSV 60 K offers maximum safety, versatility and accuracy for professional panel cutting applications.
Key Features
- Scoring Function – Splinter-free cuts on both sides from the first cut.
- Diamond Scoring Blade – Extremely long service life and consistent cut quality.
- KickbackStop – Reduces the risk of injury from kickback during sawing or plunge cutting.

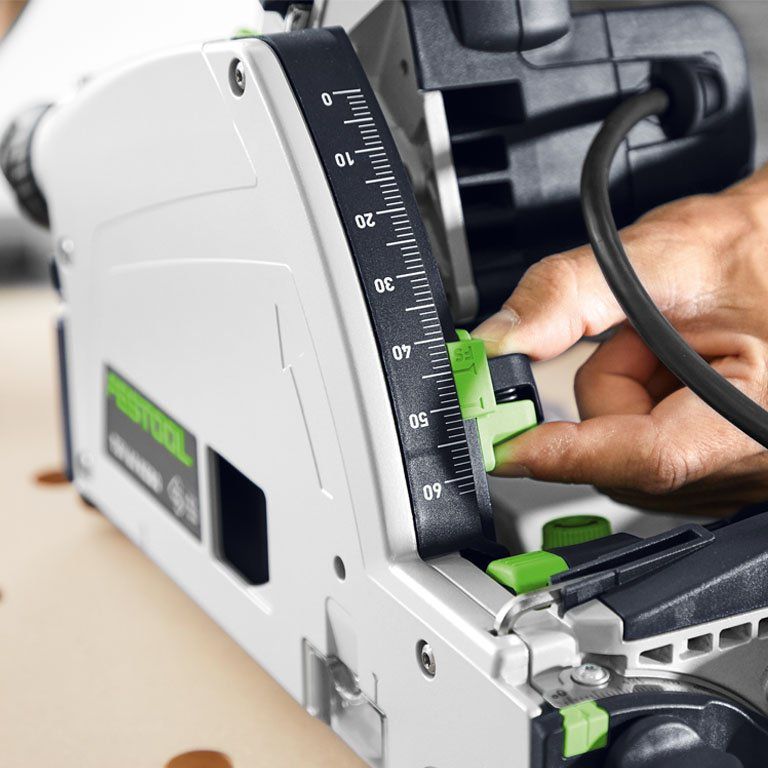

- 60 mm Cutting Depth – Suitable for a wide range of panel materials.
- Mitre Capability – Accurate scoring and cutting from 0° to 45°.

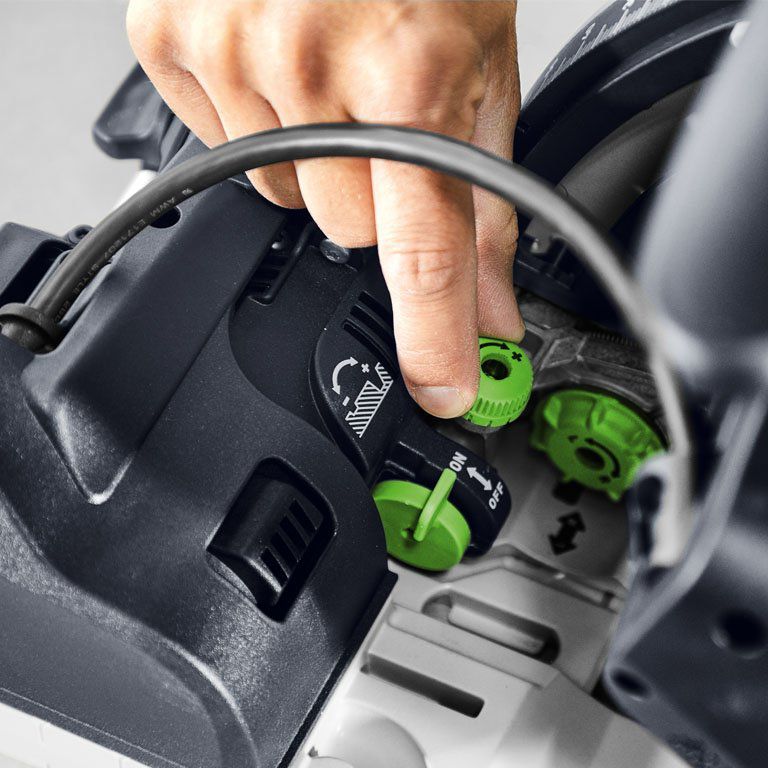

- Flexible Blade Control – Main blade and scorer can be activated or deactivated independently.

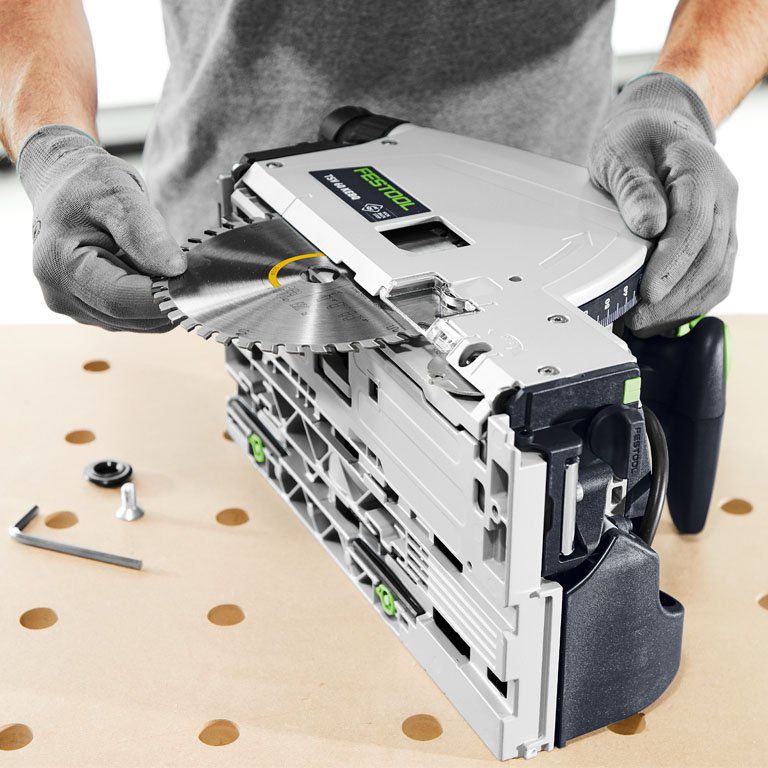

- FastFix Spindle Stop – Quick and easy blade changes.

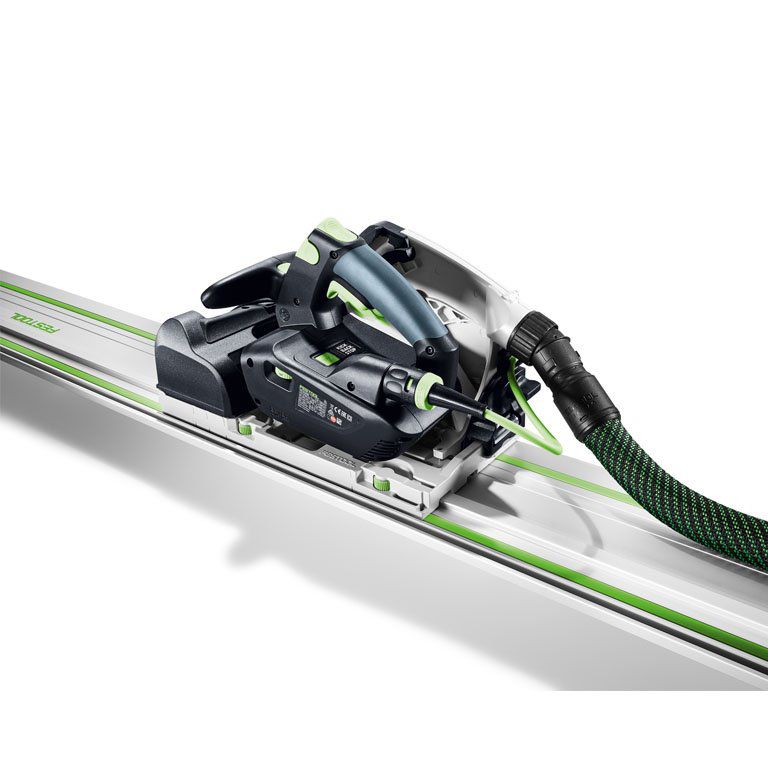

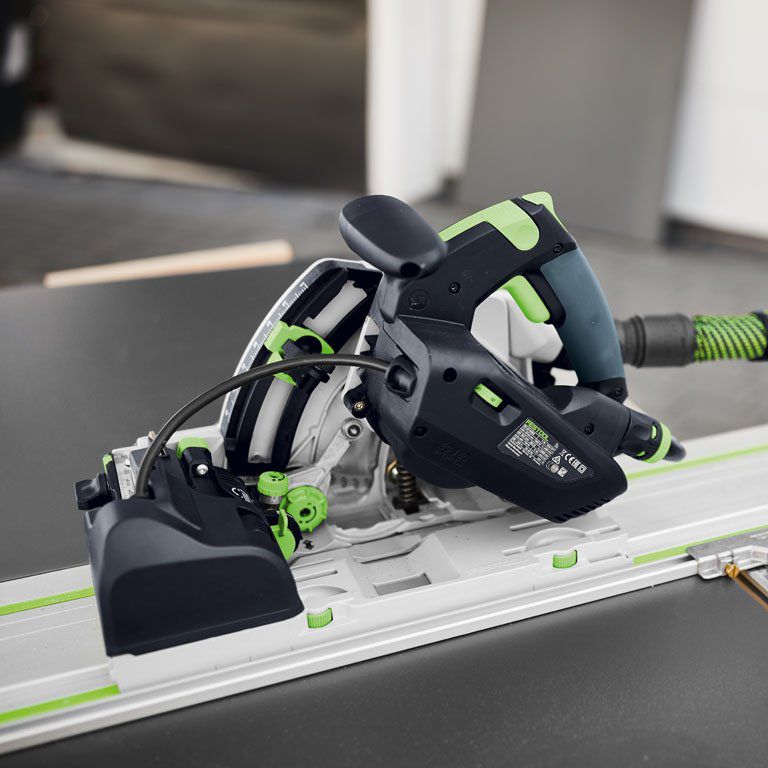

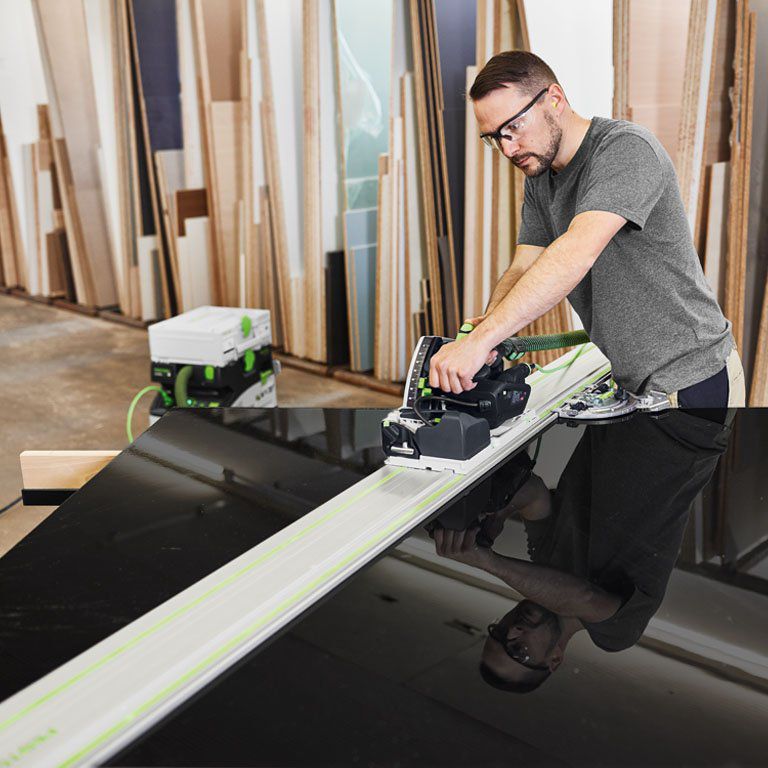

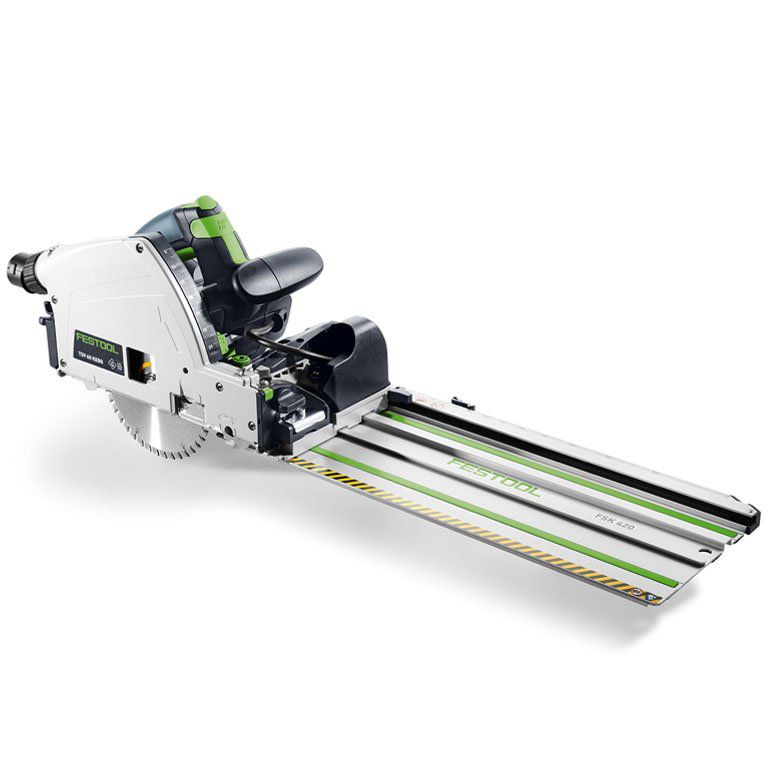

- System Compatible – Works with FS guide rails and FSK cross-cutting rails.
Technical Data
| Power Consumption (Saw / Scorer) | 1,500 / 190 W |
| No-load Speed (Saw / Scorer) | 3,000 – 6,800 / 22,000 min⁻¹ |
| Saw Blade Diameter (Saw / Scorer) | 168 / 47 mm |
| Angular Range | 0 – 45° |
| Cutting Depth | 0 – 62 mm |
| Dust Extraction Connection | 27 / 36 mm |
| Cable Length | 4.0 m |
| Product Weight | 6.20 kg |
| Transport Weight | 10.10 kg |
| Drive Type | Mains |
