Functions
Compact. Mobile. Sophisticated.

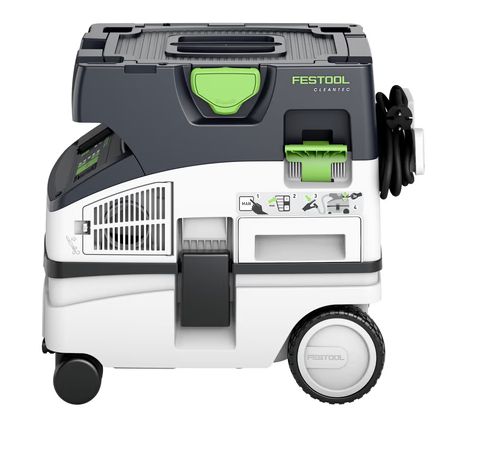

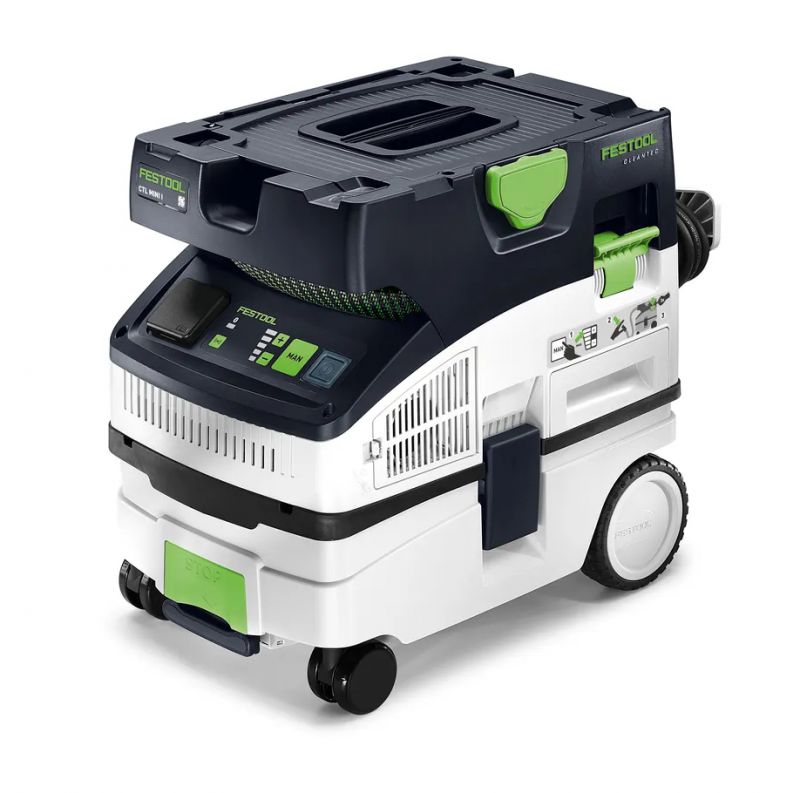

Low weight, compact dimensions and a host of innovative details – the CTL MINI compact dust extractor impresses in all aspects. It has intuitive touch operation, a smooth suction hose and a level storage area for tools and consumables. Manual dedusting and being able to replace the main filter from the outside ensure long-lasting work that protects your health. Integrated Bluetooth® technology starts the mobile dust extractor automatically via the Bluetooth® battery pack or the optional remote control. The internal hose holder, the Systainer T-LOC coupling and the practical cord holder ensure tidiness and speed. Ideal and convenient for clean air during service and installation work.
Applications:
For dust with limit values > 1 mg/m³
On-site extraction for electric power tools for minor or brief sanding, routing, sawing and drilling work
Ideal for mobile use in service and installation work and for final cleaning
Suitable for both wet and dry extraction (special wet filter required for wet extraction)
Technical data
Power consumption : 350 – 990 W
Max. volume flow : 3,700.00 l/min
Max. vacuum : 24,000.00 Pa
Filter surface area : 3,508.00 cm²
Container/filter bag capacity : 10/7.5 l
Dimensions (L x W x H) : 472 x 322 x 455 mm
Max. appliance socket connected load : 230.00 W
Dust class : L
Cable length : 7.50 m
Product weight without accessories : 11.20 kg
Transport weight incl. accessories : 14.08 kg
Drive type : Mains
Technology : Bluetooth®
Noise and vibration values
Dust extraction: Uncertainty (noise) K : 3.00 dB
Dust extraction: Standards series EN 60745 : 60335-2-69
Dust extraction: A-weighted sound pressure level, LpA : 70.00 dB(A)

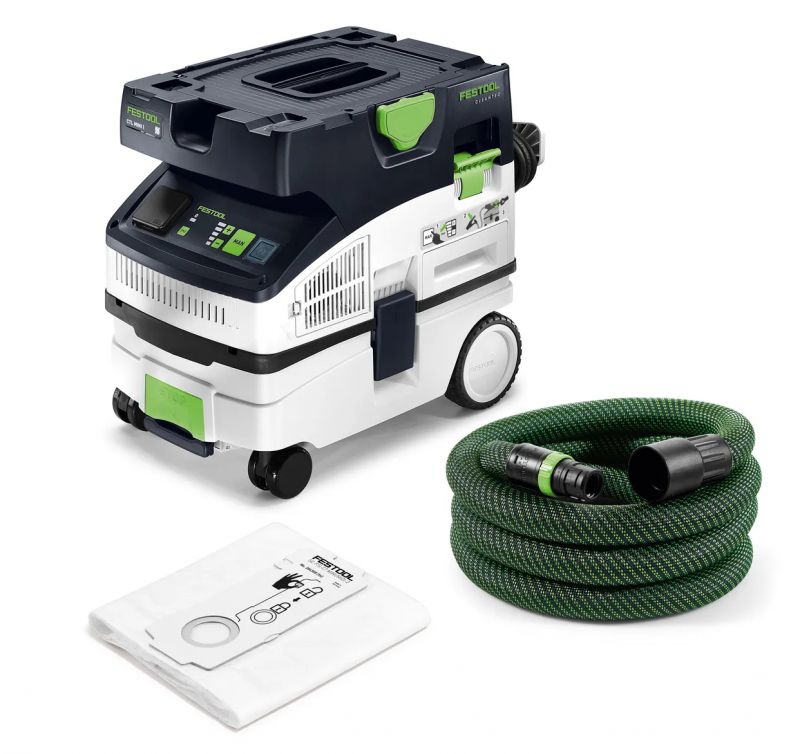

Contains
Main filter HF-CT COMP
SC FIS-CT SELFCLEAN filter bag
Suction hose D 27/32x3,5m-AS/CTR
