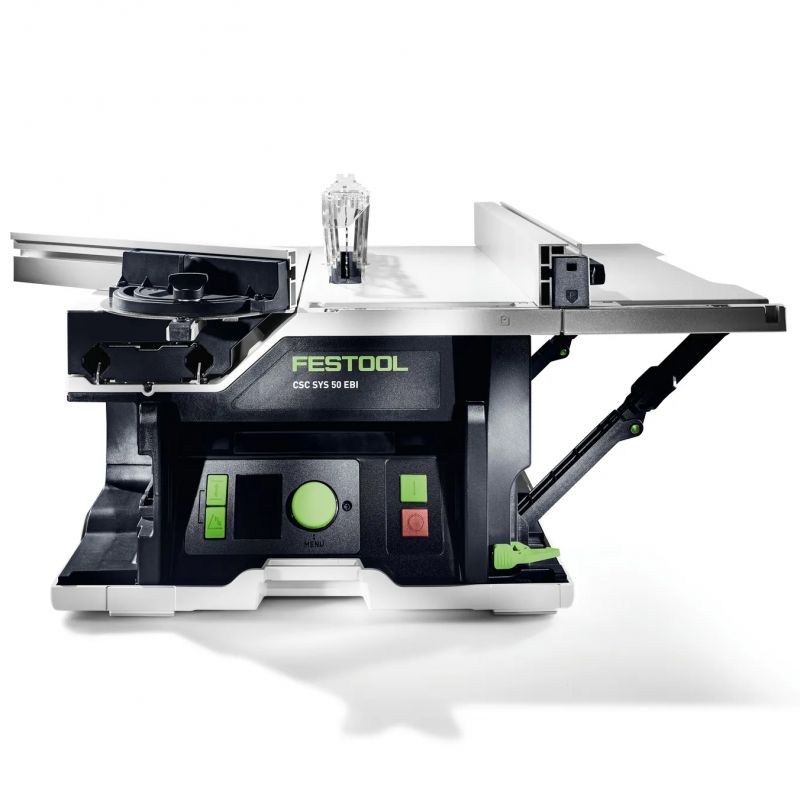

Product VideoThe CSC SYS 50 cordless table saw combines extreme precision with maximum mobility. Compact enough to fit inside a Systainer yet powerful enough to rival mains-powered machines, it delivers clean, accurate cuts wherever the job takes you.
Key Features
- Versatile cutting: Parallel cuts up to 280 mm; cross cuts up to 450 mm; angled cuts from -2° to 47°.

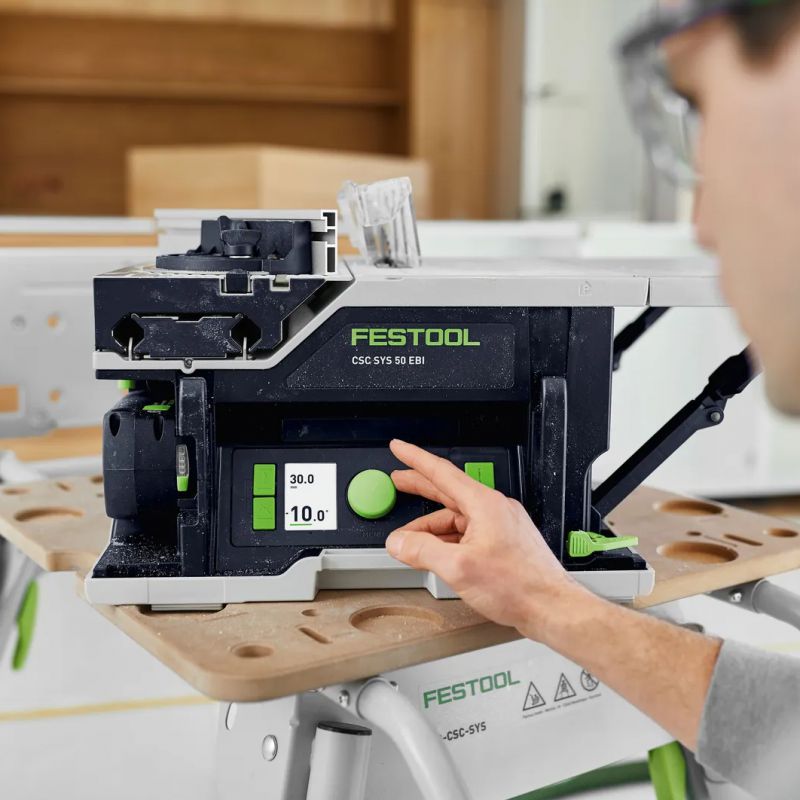

- Extreme precision: Digital height and angle adjustment accurate to 0.1 mm.
- Save settings: Store and recall four blade positions via the digital display.
- Highly precise fences: Double-clamp parallel fence and centrally clamped angle stop (-70° to +70°).
- Judder-free operation: Ball bearing-mounted slide ensures maximum cutting precision.
- Powerful: Brushless EC-TEC motor with speeds up to 6,800 rpm.
- Long-lasting: Dual 18V battery system delivers strong performance and extended runtime.

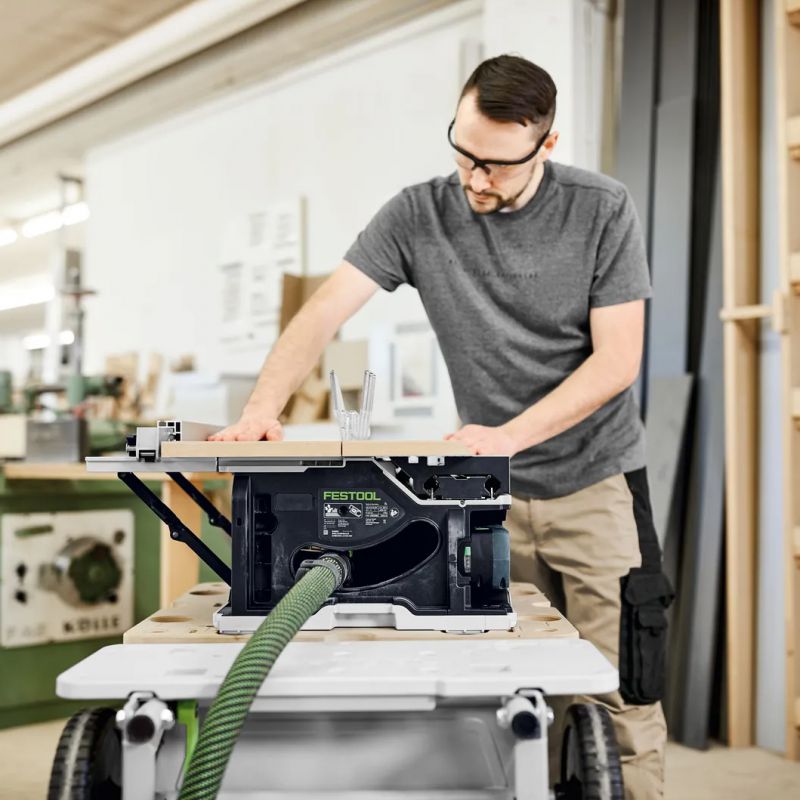

- Dust-free: Chip collection sack included; compatible with Festool cordless extractors.

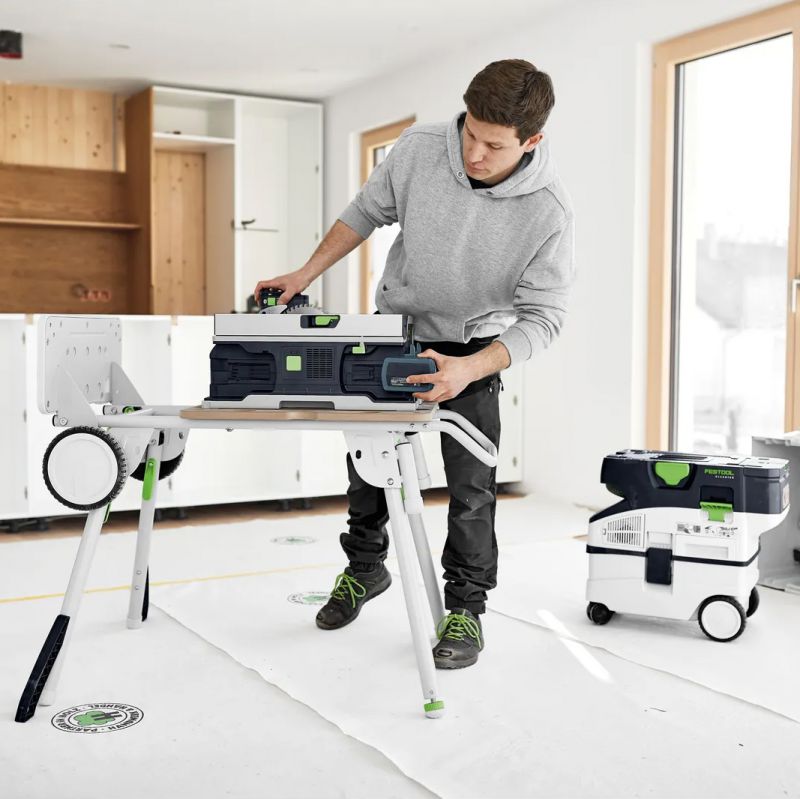

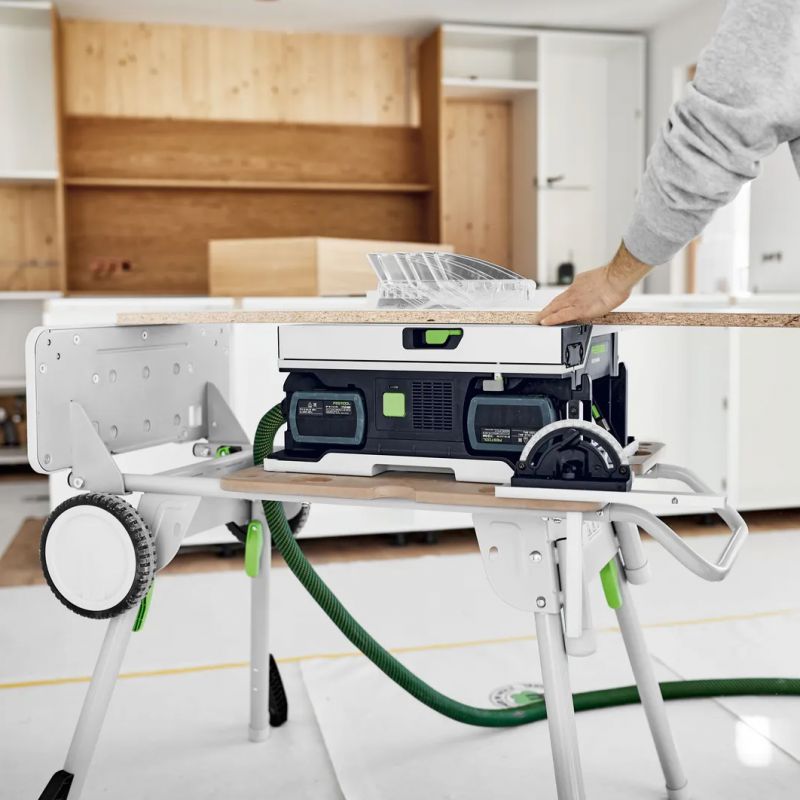

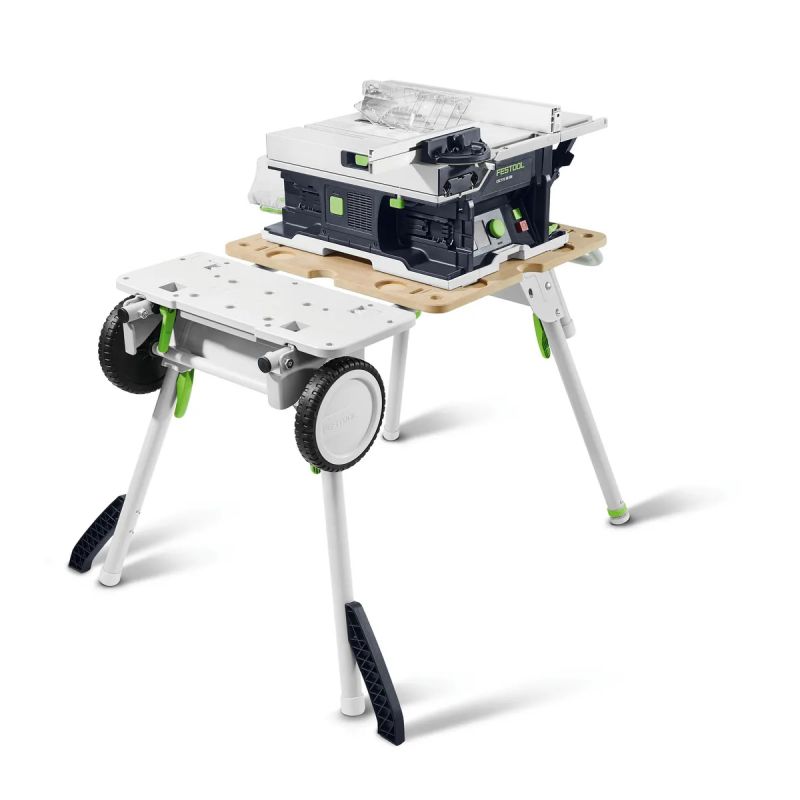

- Flexible: Includes UG-CSC-SYS underframe for transport and instant worktable setup.
Main Applications
- Cross-cuts up to 450 mm wide using integrated slide.
- Rip cuts up to 48 mm height and 280 mm width.
- Angled cuts from -10° to 47° via tilting blade.
- Exact height and angle adjustment via electric stepper motors.

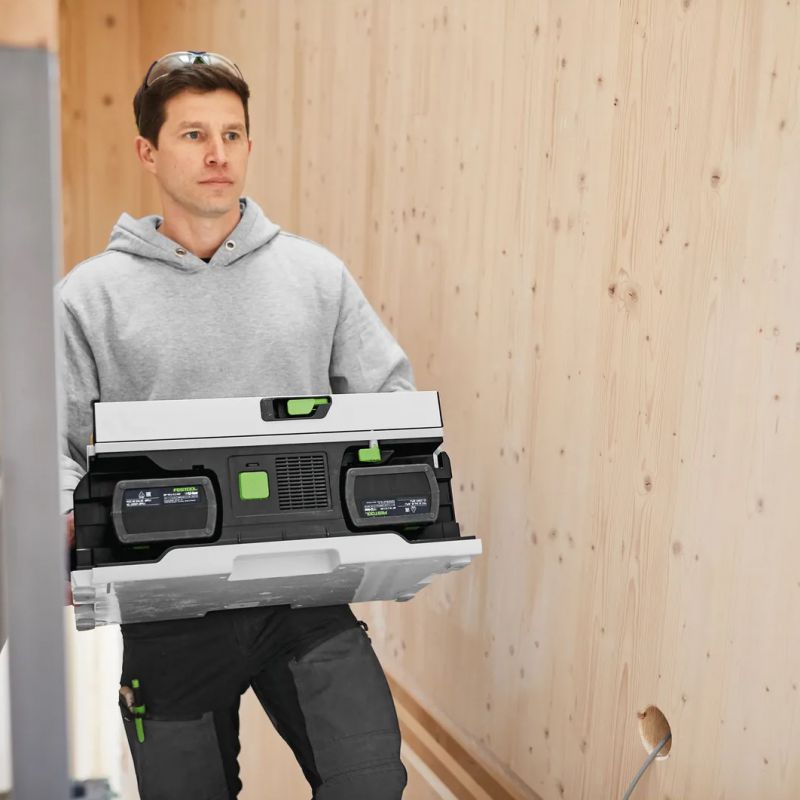

- Portable in compact Systainer format.

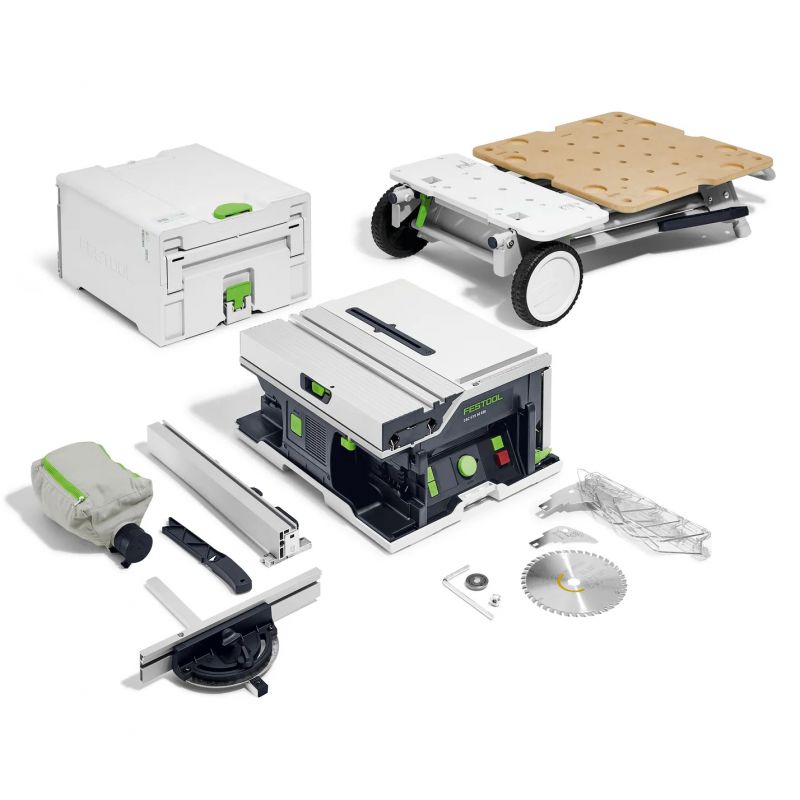

Supplied With
- Chip Collection Sack
- Operation Tool
- Parallel Side Fence
- Preset Profile Setting Rail
- Splitting Wedge for Concealed Cuts
- Splitting Wedge with Protective Hood

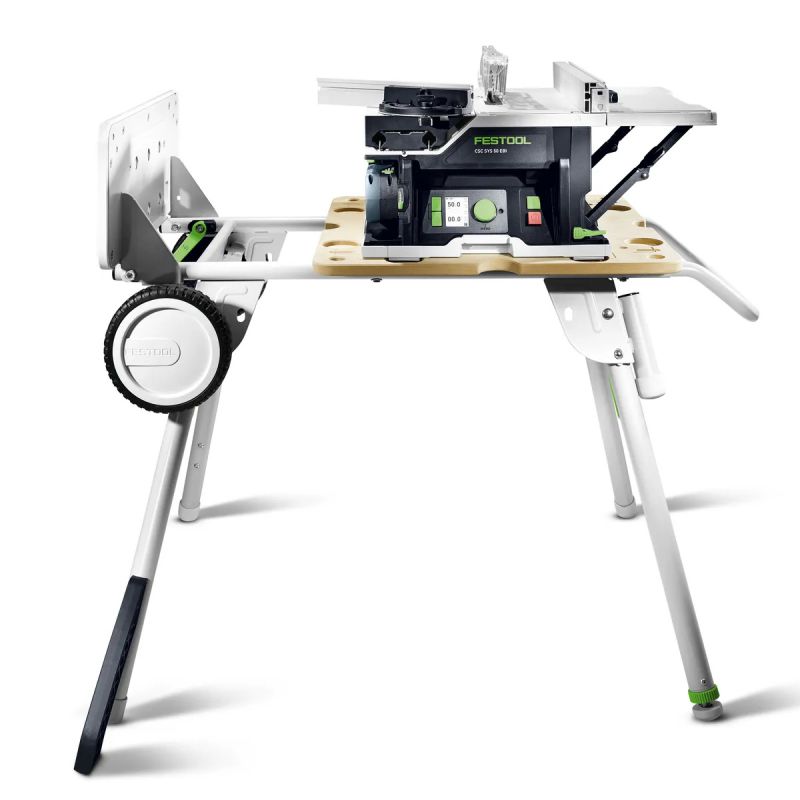

- UG-CSC-SYS Underframe
- WOOD FINE CUT HW 168 x 1.8 x 20 WD42 Saw Blade
- Workpiece Holder
Technical Specifications
| Battery Voltage | 36 V (2 x 18 V) |
| Idle Engine Speed | 4,500 – 6,800 min⁻¹ |
| Saw Blade Bore | 20 mm |
| Inclination Angle | -10° to +47° |
| Cutting Height 0° | 0 – 48 mm |
| Cutting Height 45° | 0 – 34 mm |
| Cutting Height -10° | 21 – 32 mm |
| Mitre Angle | 0 – 70° |
| Parallel Cut Width | 280 mm |
| Tabletop Height | 280 mm |
| Dimensions (L x W x H) | 512 x 396 x 296 mm |
| Dust Extraction Connection | 27 / 36 mm |
| Drive Type | Mains |
| Product Weight | 21 kg |
