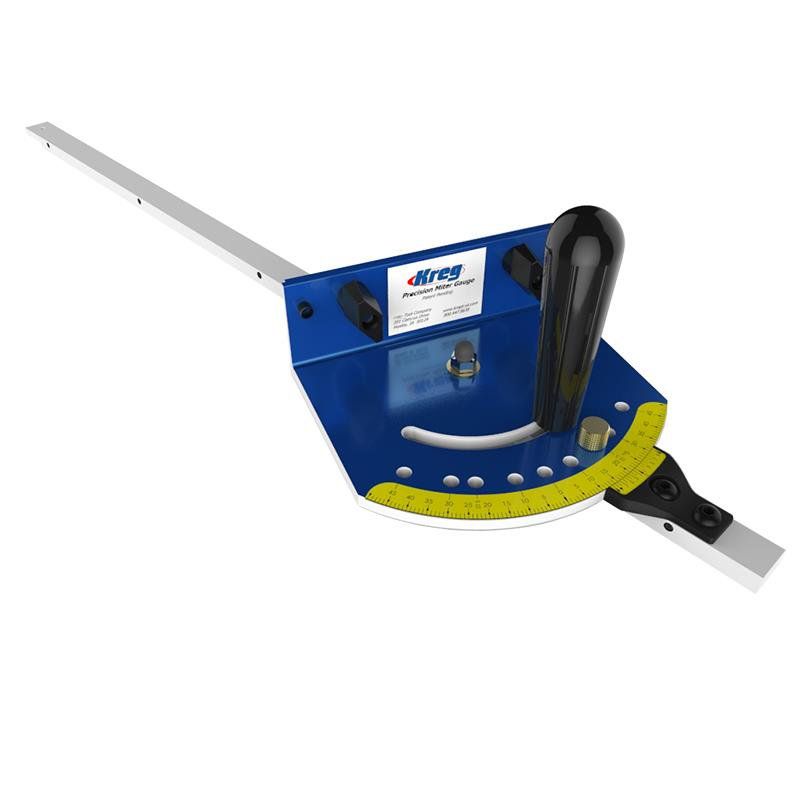

Kreg Precision Miter Gauge

Why spend your time calibrating a miter gauge when you can get factory-calibrated accuracy right out of the box? Our Precision Miter Gauge requires no calibrating, and features positive stops at 0°, 10°, 221/2°, 30° and 45°, making it easy to cut miters quickly.

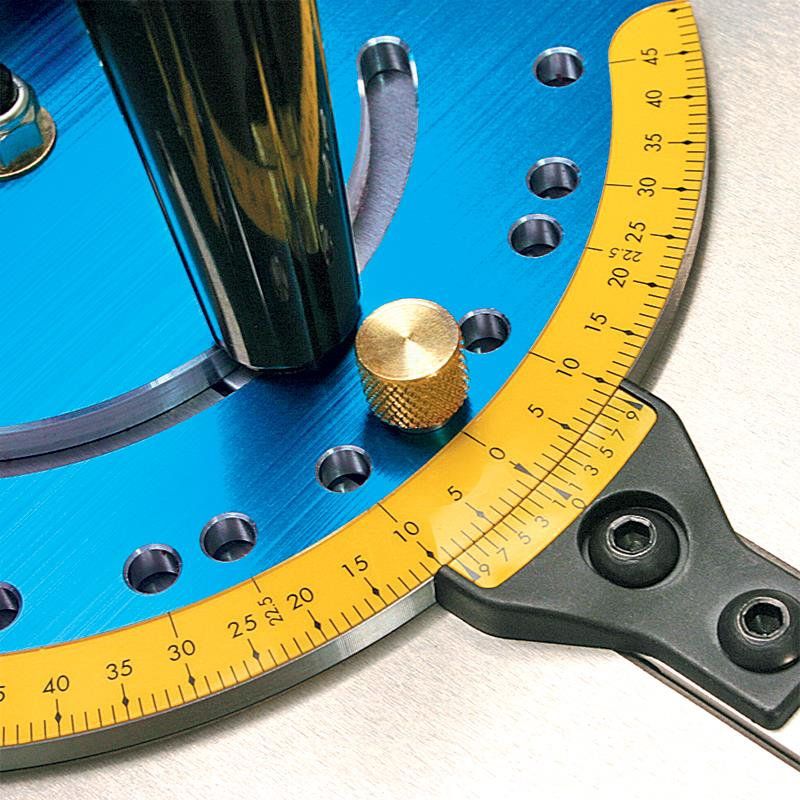

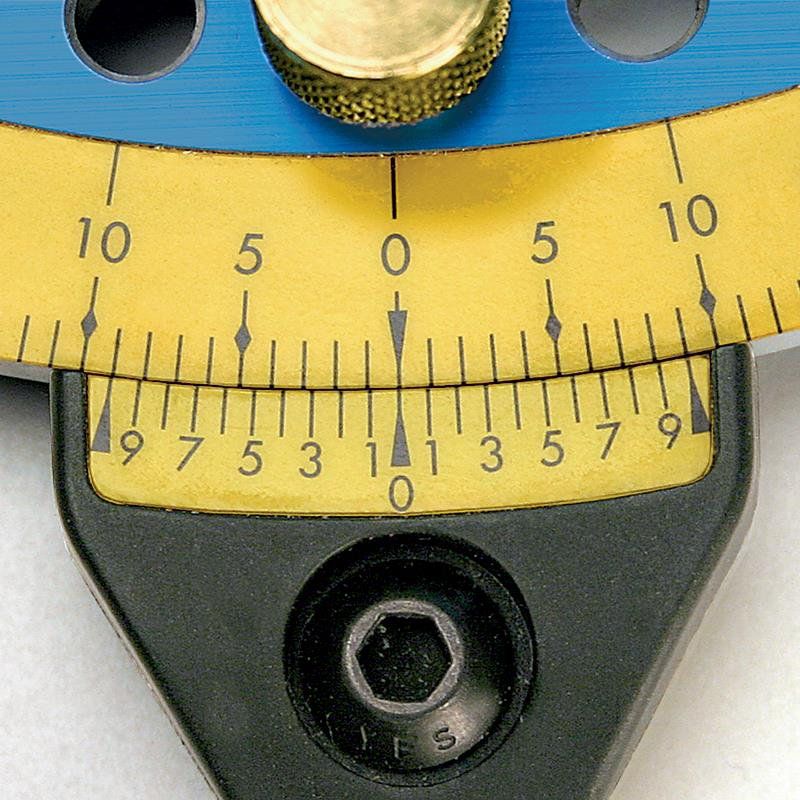

Of course, when you do want to cut a more complicated angle, the easy-to-use Vernier scale allows for fast adjustments to 1/10th of a degree.

Perfect Miters, Fast!
Precision is the name of the game for this CNC-milled miter gauge. We build accuracy into every feature of this product from the adjustable miter bar to the easy-to-use, incredibly accurate Vernier scale. With all of its great features, this miter gauge will give you better, more accurate cuts to ensure project success.

No Play in the Miter Slot
Our extremely straight 24" (610mm) anodized aluminum bar is 3/8" (9.5mm) thick by 3/4" (19mm) wide, and features five bar adjusters that you can adjust to eliminate “play” in the miter slot with the simple turn of a screw driver.

Technical Specifcation:

T-Slot Bar

24" (610mm) long
3/8" (9.5mm) tall
3/4" (19mm) wide

Positive Stops

0°, 10°, 221/2°, 30° and 45°

Vernier Scale

Adjusts to 1/10th of a degree

Finish

Anodized for easy clean-up

Calibration

Factory-calibrated; perfect right out of the box

Weight

6.5 lbs.

Includes

All necessary hardware and owner’s manual
