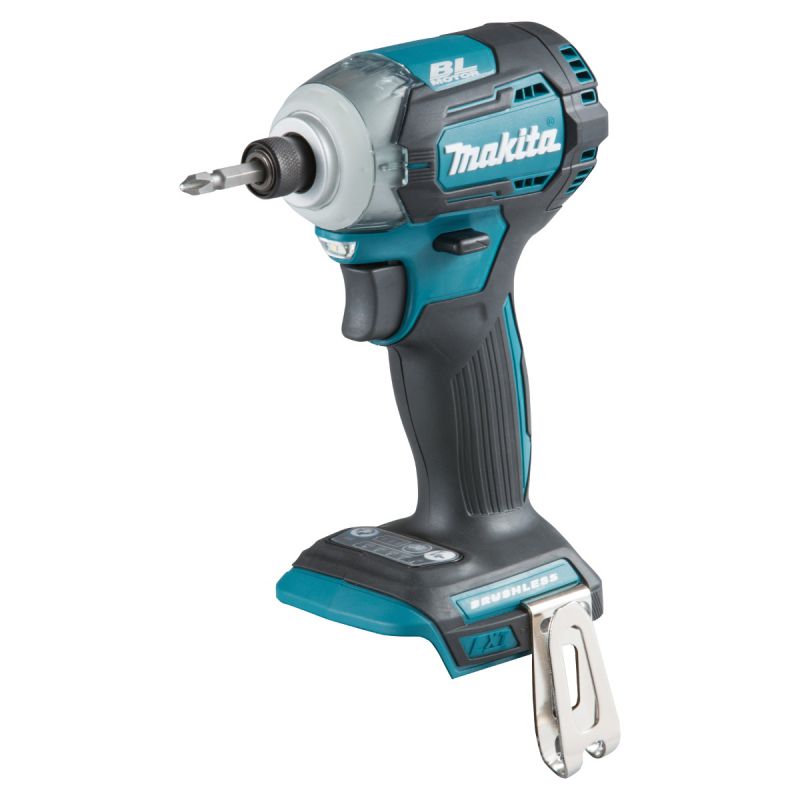

Makita DTD170Z 18 Volt LXT Li-Ion Cordless Brushless Impact Driver Body Only

The new Makita DTD170 impact driver is technically a 6-function impact driver, with four speeds and matched impact power: then the newly introduced operating mode, 'T-Mode' is used for tightening self-drilling Tek screws and the new A-Mode (Assist mode) which, when selected starts the rotation slowly allowing maximum control of the screw as it starts to bite into the material. Once the impact driver detects the screw tightening it switches to full speed and full impact power to complete the tightening sequence. The A-Mode is designed to eliminate ‘screw cam-out’ and ‘cross threading’ caused by high speed rotation before the screw bites in the material.

The new Makita DTD170 generates a massive 175 Nm maximum tightening torque with four impact speeds and power stages ranging from soft setting of 1100 rpm and 1100 impacts per minute; through medium and hard setting levels up to a maximum of 3,600 rpm and 3,800 ipm. This impact driver handles high strength bolts up to M14 and 22x125mm coarse thread screws.

In line with all new Makita tools the performance increases whilst the overall size of the machines decreases. The new top-of-the-range Makita DTD170 impact driver has a compact overall body length of just 117mm and weighs only 1.5kg.

MAKITA DTD170 FEATURES
New impact mode, 'Assist-Mode' drives slowly to start screw before full tightening to eliminate "screw cam-out" and "cross threading“
TEK mode ('T-mode') reduces impact power during final stages of fastener seating
Electronic 4-stage impact power selection
Massive 175 Nm max tightening torque
More compact body with overall length of just 117mm and lightweight at only 1.5 Kg
Brushless DC motor with high power to weight and size ratio
Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
One touch sliding chuck for easy bit installation and removal
Twin LED job lights with pre-glow and afterglow features
Ergonomic soft rubber grip design for vibration absorption and comfortable operation
Variable speed control by trigger with electric brake

MAKDTD170Z SPECIFICATION
Voltage: 18v
Max Torque (Nm): 175
Brake Type: Electric
LED Job Light: Yes / Twin / Pre-glow / After-glow
Battery Capacity Indicator: Yes
Battery Compatibility: 18v Lithium-Ion (LXT)
Rotation: Forward & Reverse
Variable Speed Control Trigger: Yes / + 4-Stage Impact Power Selection
No Load Speed (RPM):
Max: 0-3600 / H: 0-3200 / M: 0-2100 / S: 0-1100
Machine Screw Capacity: M4-M8
Standard Bolt Capacity: M5-M16
High Tensile Bolt Capacity: M5-M14
Coarse Thread Length Capacity (mm): 22-125
Max. Impacts Per Minute (ipm): 4 Stages as below:
Max: 0-3800 / H: 0-3600 / M: 0-2600 / L: 0-1100
Driving Shank: 1/4" Hex
Overall Length (mm): 117
Net Weight (Kg with 1.5/2Ah Battery): 1.2
Net Weight (Kg with 3/4/5Ah Battery): 1.5
Brushless Motor: Yes
