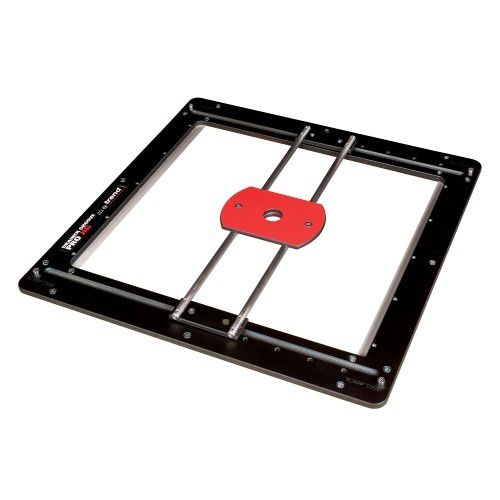

For routing draining grooves in solid timber and solid surface worktops.
Made from 12mm hardwearing CNC machined phenolic.
X and Y-axis ski and carriage allows forward and back, and side to side movement.
Provides a 0.5 degree fall.
Router carriage has hole to accept a 30mm guide bush.
Carriage can be locked to allow parallel groove routing for standard drainer grooves.
Router carriage can also be used for tapered surfacing applications with a 19mm diameter straight.
Router carriage is not used when inner templates are fitted.
Outer frame has index holes at 25mm centres to restrict length of slots and includes two index pins.
Five inner templates accessories available to give various groove affects such as straight slot, straight fan, curved fan, lightning fan and hot rod.
Requires suitable plunge router with 30mm guide bush and cutters.
Patent App. No. GB1718517.4
A Unibase may be required for certain makes and models of router

Dimensions:
Fall=0.5 degree
Groove length=447 mm
X-axis=447 mm
Y-axis=415 mm
Length=600 mm
Height=600 mm
Width=12 mm
Weight=4kg
Jig Requirements
Guide bush=30 mm
Plunge router=1/2-inch
Cutter=Cove R9.5 mm

Brand: Trend
